Powerful Paddy Rice Harvester with Advanced Technology for Sale

Product Description

Product Parameters

Model		4LZ-6
Horsepower		109HP
Dimensions(L*W*H)(mm)		5860*2620*2930
Weight(kg)		3785
Cutting width (mm)		2300
Track	Track specification (mm)	90*53chains*500
	Track gauge(mm)	1250
Cab type		Awning or AC Cab
Production efficiency	Productivity(hm²/h)	0.3-1
	Fuel consumption(L/hm²)	≤41
	Mini clearance(mm)	300
Thresher	Grain tank(m³)	2.2
	Threshing pattern	Longitudinal axial flow
	Grain unloading drum height(mm)	3700
	Threshing drum size(mm)	Φ620*2200

Detailed Photos

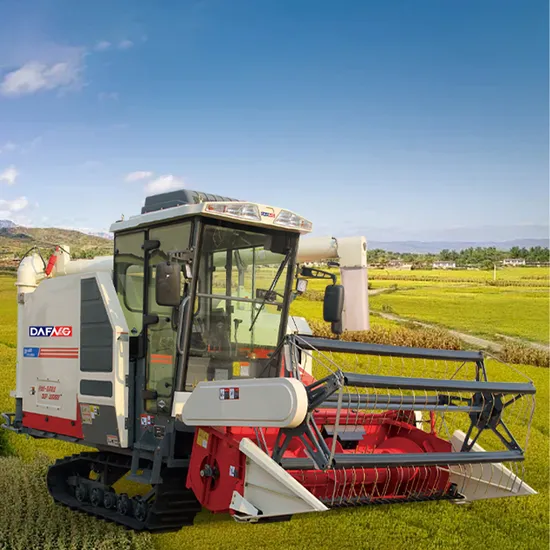

4LZ-6 This exceptional crawler grain harvester, the 4LZ-6, elevates your harvest with its cutting-edge longitudinal axis flow roller threshing separation technology. Designed to efficiently and effortlessly tackle the harvest of rice and wheat, it doesn't stop there-this versatile machine is also equipped with specialized devices for the seamless collection of rapeseed, corn, and millet, making it a powerhouse of capability.
Product Description
Unveil the intricate and comprehensive technical specifications of the 4LZ-6 model.
This exceptional model can be optionally fitted with a plate type divider and an innovative "mouse cage" divider, offering extraordinary versatility for a wide range of crops. It is particularly effective for inclined crops, significantly reducing header losses to ensure maximum yield. Ingeniously designed, the spring gear tube now comes with a protective cover, meticulously crafted to effectively prevent any grass entanglement, ensuring smooth operations. The lifting and rotating header has undergone a meticulous optimization process, coupled with an extended bridge, to adeptly address challenges such as low-cutting header during the harvest of fallen crops and heighten the header's passability. The tip bottom of the header blade guard is strategically positioned 40 mm below the horizontal ground, while the high point reaches 1000 mm from the horizontal ground, enhancing efficiency and precision. The bridge feed inlet has been masterfully optimized to include floating wheels, allowing for effortless adjustment according to the feeding quantity, thereby greatly enhancing the conveying passability and operational fluidity. Ingeniously equipped with a turn-over device, the bridge allows for swift resolution of blockage faults, ensuring uninterrupted performance and reliability. The grain separation chamber feed opening features an arc-shaped stainless steel plate, chosen for its remarkable strength and wear resistance, promising durability and longevity. Boasting an efficient grain separation cleaning system, the grain roller spans an impressive 2.0 meters and incorporates a cutting-edge cleaner fan along with an adjustable angle fish scale clean screen. This powerhouse system offers formidable crop processing capability, adeptly addressing issues of poor feeding and minimizing cleaning losses. The high-clearance chassis is meticulously engineered to achieve a minimum ground clearance of 330mm, significantly enhancing resistance to sinking. This design provides the option of chains for superior water field throughput and adaptability, expanding operational versatility. Outfitted with a renowned, high-performance National III engine, this machine delivers robust power, ensuring high operational efficiency and commendably low fuel consumption. Incorporating the original imported hydraulic transmission, complete with the efficient 80 gearbox, this machine offers remarkable speed, agile steering, and outstanding maneuverability, facilitating seamless operation. The newly designed operator panel is both discreet and ergonomically optimized for user comfort. Enhanced with waterproof electrical components, it promises a prolonged service life. The recessed start switch installation is a thoughtful addition to prevent accidental collisions or engine shutdowns. This model offers the flexibility of choosing between two straw processing methods, making it exceptionally suited for diverse regional needs, ensuring adaptability and efficiency. Optionally accessible with specialized harvesting devices for rape seed, corn, and millet, this machine demonstrates exceptional adaptability, facilitating multiple uses and maximizing utility with a single machine.
