71926CAP5/DBB High precision double row, single row, four point Angular Contact Ball Bearing

Product Details

Product Description

Product Description

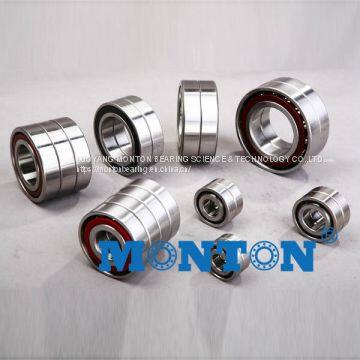

High precision double row, single row, four point Angular Contact Ball Bearing
Angular contact ball bearings are also have lots of structures, single row angular direction, While double row angular contact ball bearings in DB or DF combination and four-point contact ball bearings can accommodate radial load and axial load in two directions. Angular contact ball bearings suit high-speed rotation and high-precision rotation. These bearings are mainly used in the fields like machine tool spindles, high frequency motors, oil pumps, air compressors, printing machines, etc. For four-point contact ball bearings are mostly used in the roller-boxes of rolling mills to carry axial load.

Principal dimension					Basic load ratings		Designation	Function point a	Abutment and fillet dimensions			Speed ratings		Weight kg
d	D	B	r12 min	r34 min	dyc Cr	stc Cor			da min	Da max	ra max	Grease	Oil
120	260	55	3	1.1	214	288	B7324CM	52.9	134	246	2.5	3400	4000	14.2
120	260	55	3	1.1	206	277	B7324ACQ1 (146324Q)	71.8	134	246	2.5	1800	2400	14
120	260	55	3	1.1	206	277	B7324ACM	71.8	134	246	2.5	1800	2400	14.2
110	240	50	3	1.1	164	212	B7322BQ1	99.2	124	226	2.5	1800	2400	11.4
90	190	43	3	1.1	132	145	B7318C	40.3	104	176	2.5	4200	8800	4.9
120	215	40	2.1	1.1	204	239	B7224ACQ1/HAS0(146224QT )	59	132	203	2	2600	3600	6.45
80	140	26	2	1	75	83	B7216C	27.7	90	130	2	6000	8000	1.47
110	170	28	2	1	76	101	B7022AC	47	120	160	2	3200	4200	2.03
90	225	54	4	1.5	179	214	7418ACM	63.8	108	207	3	2900	4000	11.5
80	200	48	3	1.1	152	169	7416ACM	56.7	94	186	2.5	2600	3800	8.6
80	200	48	3	1.1	152	169	7416ACJ	56.7	94	186	2.5	2100	3000	7.22
80	200	48	3	1.1	152	169	7416AC	56.7	94	186	2.5	2600	3800	7.18
130	280	58	4	1.5	192	268	7326B	115.1	148	262	3	1800	2400	17.9
120	260	55	3	1.1	193	262	7324B	107.2	134	246	2.5	1600	2200	14.6
120	260	55	3	1.1	204	269	7324AC	71.8	134	246	2.5	2200	3000	13.7
110	240	50	3	1.1	164	212	7322BM	99.3	124	226	2.5	2200	3000	11.5
110	240	50	3	1.1	164	212	7322B	99.3	124	226	2.5	1800	2400	9.84
110	240	50	3	1.1	184	231	7322ACM	65.8	124	226	2.5	2600	3400	9.97
105	225	49	3	1.1	155	193	7321BM	93.7	119	211	2.5	2400	3200	9.51
100	215	47	3	1.1	146	177	7320BT	89.6	114	201	2.5	1900	2700	7.58
100	215	47	3	1.1	146	177	7320BM	89.6	114	201	2.5	2400	3400	8.41
100	215	47	3	1.1	146	177	7320B	89.6	114	201	2.5	1900	2700	7.29
100	215	47	3	1.1	164	199	7320ACM	60.2	114	201	2.5	2800	3800	9.61
95	200	45	3	1.1	151	174	7319CM	42.3	109	186	2.5	5000	6000	6.67
95	200	45	3	1.1	145	167	7319ACM	56.9	109	186	2.5	3000	4000	6.67
90	190	43	3	1.1	141	158	7318CM	40.3	104	176	2.5	5200	6300	5.79
90	190	43	3	1.1	120	135	7318BM	80.2	104	176	2.5	2800	3800	5.26

High precision double row, single row, four point Angular Contact Ball Bearing
Angular contact ball bearings are also have lots of structures, single row angular direction, While double row angular contact ball bearings in DB or DF combination and four-point contact ball bearings can accommodate radial load and axial load in two directions. Angular contact ball bearings suit high-speed rotation and high-precision rotation. These bearings are mainly used in the fields like machine tool spindles, high frequency motors, oil pumps, air compressors, printing machines, etc. For four-point contact ball bearings are mostly used in the roller-boxes of rolling mills to carry axial load.

Principal dimension					Basic load ratings		Designation	Function point a	Abutment and fillet dimensions			Speed ratings		Weight kg
d	D	B	r12 min	r34 min	dyc Cr	stc Cor			da min	Da max	ra max	Grease	Oil
120	260	55	3	1.1	214	288	B7324CM	52.9	134	246	2.5	3400	4000	14.2
120	260	55	3	1.1	206	277	B7324ACQ1 (146324Q)	71.8	134	246	2.5	1800	2400	14
120	260	55	3	1.1	206	277	B7324ACM	71.8	134	246	2.5	1800	2400	14.2
110	240	50	3	1.1	164	212	B7322BQ1	99.2	124	226	2.5	1800	2400	11.4
90	190	43	3	1.1	132	145	B7318C	40.3	104	176	2.5	4200	8800	4.9
120	215	40	2.1	1.1	204	239	B7224ACQ1/HAS0(146224QT )	59	132	203	2	2600	3600	6.45
80	140	26	2	1	75	83	B7216C	27.7	90	130	2	6000	8000	1.47
110	170	28	2	1	76	101	B7022AC	47	120	160	2	3200	4200	2.03
90	225	54	4	1.5	179	214	7418ACM	63.8	108	207	3	2900	4000	11.5
80	200	48	3	1.1	152	169	7416ACM	56.7	94	186	2.5	2600	3800	8.6
80	200	48	3	1.1	152	169	7416ACJ	56.7	94	186	2.5	2100	3000	7.22
80	200	48	3	1.1	152	169	7416AC	56.7	94	186	2.5	2600	3800	7.18
130	280	58	4	1.5	192	268	7326B	115.1	148	262	3	1800	2400	17.9
120	260	55	3	1.1	193	262	7324B	107.2	134	246	2.5	1600	2200	14.6
120	260	55	3	1.1	204	269	7324AC	71.8	134	246	2.5	2200	3000	13.7
110	240	50	3	1.1	164	212	7322BM	99.3	124	226	2.5	2200	3000	11.5
110	240	50	3	1.1	164	212	7322B	99.3	124	226	2.5	1800	2400	9.84
110	240	50	3	1.1	184	231	7322ACM	65.8	124	226	2.5	2600	3400	9.97
105	225	49	3	1.1	155	193	7321BM	93.7	119	211	2.5	2400	3200	9.51
100	215	47	3	1.1	146	177	7320BT	89.6	114	201	2.5	1900	2700	7.58
100	215	47	3	1.1	146	177	7320BM	89.6	114	201	2.5	2400	3400	8.41
100	215	47	3	1.1	146	177	7320B	89.6	114	201	2.5	1900	2700	7.29
100	215	47	3	1.1	164	199	7320ACM	60.2	114	201	2.5	2800	3800	9.61
95	200	45	3	1.1	151	174	7319CM	42.3	109	186	2.5	5000	6000	6.67
95	200	45	3	1.1	145	167	7319ACM	56.9	109	186	2.5	3000	4000	6.67
90	190	43	3	1.1	141	158	7318CM	40.3	104	176	2.5	5200	6300	5.79
90	190	43	3	1.1	120	135	7318BM	80.2	104	176	2.5	2800	3800	5.26
