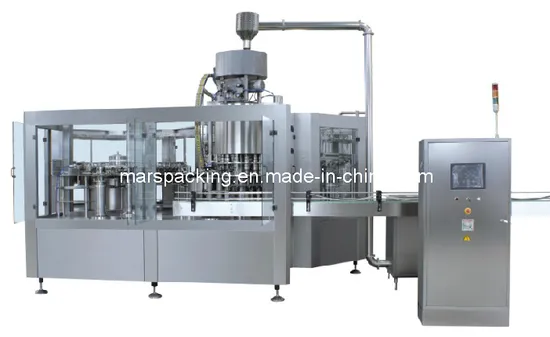

2024 New Technology 350bpm Isobaric Bottle Filling Machine (DCGF60-60-15)

US$120,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DCGF50-50-15
Condition
New
Customized
Customized
Voltage
380V
Composition
Filling Machine
Processing Material
Special Agricultural Products
Process
Concentration and Dry
Transport Package
Wooden Case
Specification
CE
Trademark
Mars
Origin
Zhangjiagang
HS Code
8422301090
Production Capacity
160 PCS/Year

Product Description

2024 New Technology Isobaric Bottle Filling Machine
Characteristics:
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology
3. Advanced programmable PLC is equipped to control the main machine.
4. Working speed can be adjusted by frequency conversion device.
5. Main electronic components are all from famous international enterprises, like Siemens.
Technical parameter:
Model DCGF60-60-15
Production capacity 21,000-22,000B/H (basis on 500ml bottle)
Filling precision ≤±5mm(liquid level)
Filling pressure <0.4Mpa
Polyester bottle specification bottle diameter:φ50-φ110mm
bottle height: 150-320mm
Suitable cap type plastic screw cap
Water pressure of washing bottle 0.2-0.25Mpa
Water consumption for washing bottle 3500Kg/h
Spraying position 25
Dripping bottle position 14
Gas source pressure 0.7Mpa
Gas consumption 1.2m3/min
Total power 13Kw
Total weight 11500Kg
Overall dimension 5800×5300×2750mm
