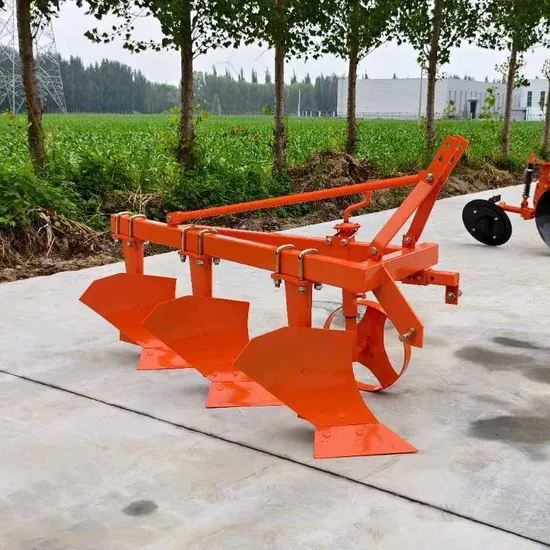

Share Plow Plough 1L-220 Moldboard Plow Tractor Mounted Mouldboard Farrow Plough

Product Description

Product Description
1L series share plow is a four-wheel tractor mounted plow, mainly used for plowing loam, the sand loam , cultivated and dry land.
Product Parameters

Model	1L-220	1L-320	1L-420	1L-520	1L-225	1L-325	1L-425	1L-525
Width of cut (mm)	400	600	800	1000	500	750	1000	1250
Depth of cut (mm)	200~250
Farrow	2	3	4	5	2	3	4	5
Weight (kg)	64	100	130	170	125	170	240	270
Tractor power (hp)	15~25	25~35	35~45	50~60	25	40	50	65
Mounted	Three point mounted

Model	1L-330	1L-430	1L-530	1L-335	1L-435	1L-535
Width of cut (mm)	900	1200	1500	1050	1400	1750
Depth of cut (mm)	220-270
Farrow	3	4	5	3	4	5
Weight (kg)	230	330	420	300	470	520
Tractor power (hp)	50	70	80	55	75	90

Detailed Photos
