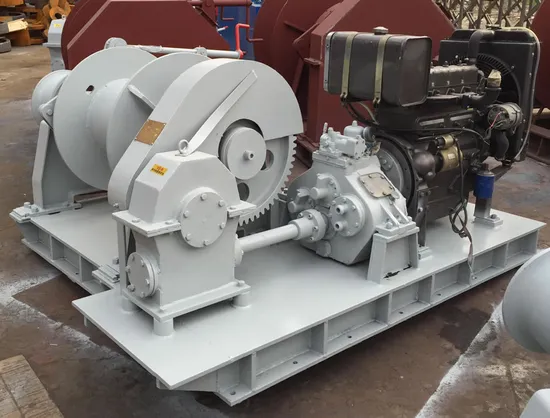

20 Ton Marine Diesel Engine Hydraulic Anchor Winch

Product Description

Product Description
The anchor windlass is installed on the main deck at the bow and stern of the ship, and is used for anchoring and mooring when the ship is anchored.
The windlass mainly consists of a base, a bracket, an anchor chain wheel, a brake, a sprocket, a gearbox, an electrical control system (excluding manual windlass), etc. The electric windlass has an electric motor, while the hydraulic windlass has a hydraulic pump station.

Product Features
Characteristics of marine hydraulic winch:
In terms of structure, the winch is characterized by compact structure, beautiful appearance, small volume and light weight;
Function: the hydraulic winch has the characteristics of safety and efficiency, large starting torque, good low-speed stability, low noise and reliable operation;
Application: marine hydraulic winch can be used for ship deck, port, offshore platform, etc. They can be used for anchoring, mooring, towing and other offshore operations. To meet different operation requirements, we provide marine hydraulic towing winch, hydraulic anchor winch and hydraulic mooring winch.
Our Advantages
(1) It has good speed regulation performance.
(2) Low speed and high torque hydraulic motor is usually used, with low speed and large output torque. It is no longer necessary to set a huge mechanical reducer, and can directly drive the chain wheel.
(3) The hydraulic transmission has self braking performance and is safe and reliable.
(4) Compact structure, small weight and size per unit power
(5) It is easy to operate and maintain.
(6) Easy remote control and automation

Product Parameters
Parameters(part) of anchor windlass

Model	Dia. of chain (mm)	Working load(kN)		Overload pulling force(kN)		Holding load(Kn)		Nominal speed (m/min)	Warping load(kN)
		AM2	AM3	AM2	AM3	AM2	AM3
17.5	17.5	13	14.6	19.5	21.9	80	115	9	8
19	19	15.3	17.2	23	25.8	95	135	9	10
20	20	17.9	20	26.9	30	110	157	9	10
22	22	20.6	23	30.9	34.5	126	180	9	15
24	24	24.5	27.4	36.8	41.1	149	214	9	20
26	26	28.7	32.1	43.1	48.2	175	250	9	20
28	28	33.3	37.2	50	55.8	202	289	9	20
30	30	38.3	42.8	57.5	64.2	231	330	9	30
32	32	43.5	48.6	65.3	72.9	261	374	9	30
34	34	49.1	54.9	73.7	82.4	294	421	9	30
36	36	55.1	61.6	82.7	92.4	329	470	9	30
38	38	61.4	68.9	92.1	103.4	365	522	9	40
40	40	68	76	102	114	402	576	9	40
42	42	75	93.8	112.5	125.7	442	632	9	50
44	44	82.3	92	123.5	138	483	691	9	50
46	46	89.9	100.5	134.9	150.8	526	753	9	50
48	48	97.9	109.4	146.9	164.1	570	816	9	50
50	50	106.3	118.8	159.5	178.2	617	882	9	50
.......	.......	.......	......	......	......	......	......	......	......
78	78	258.6	289	387.9	433.5	1416	2026	9	125

notes:The above parameters are for reference, and we can provide customized services.
Product Expansion
We also provide anchor and mooring combined windlass.This product mainly consists of three parts: power unit, actuator, and control system. Suitable for bulk carriers, container ships, oil tankers, LNG ships, roll on/roll off ships, etc. Our company can design and manufacture various hydraulic or electric driven anchor mooring combined windlass according to customer needs.

Packaging & Shipping

After Sales Service
Our after-sales service provide:
1.14 months warranty when products leave the factory, or 12 months warranty after installation
2. 2 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.
4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time and Engineers available to service machinery overseas.

---
