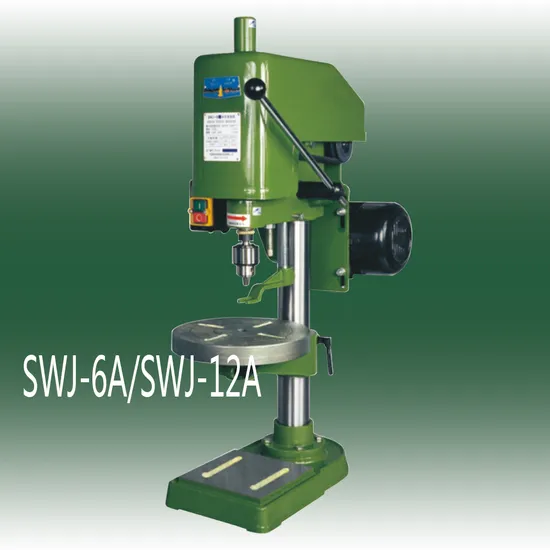

Swj-12A High Speed Vertical Tapping Machine Metal Heavy Duty Cast Iron Steel Tapper Machine M12 M8

US$494.00 1 Piece (MOQ)

Basic Info.

Model NO.
SWJ-12A
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
370W
Max Drilling Capacity
12 mm
Transport Package
Wooden Case
Specification
61x44x93cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300

Product Description

Model SWJ-6/SWJ-12 SWJ-6B/SWJ-10 SWJ-6A/SWJ-12A
Max.tapping capacity(Cast iron/Steel) M6/M5,M12/M8 M8/M6,M12/M10 M6/M5,M12/M8
Distance spindle axis to column surface 127mm 140mm 127mm
Max.distance spindle nose to worktable 261/250mm 300/265mm 231/220mm
Spindle/Worktable travel 40/45mm 50mm 40/45mm
Spindle taper B12/B16 B12/B16 B12/B16
Spindle speeds range forward:480.850rpm/260-750rpm forward:350-1310rpm/250-800rpm forward:480.850rpm/260-750rpm
reverse:580,1050rpm/320-930rpm reverse:480-1790rpm/340-1100rpm reverse:580.1050rpm/320-930rpm
Dimension of worktable surface 196x196mm/230x230mm 200x200mm 230mm/245mm
Overall height 815/825mm 767mm 815/825mm
Motor 370W 370/550W 370W
G.W./N.W. 63/43kg,72/48kg 73/60kg 63/43kg,72/48kg
Ship measurement 61x44x93cm 60x40x72cm 61x44x93cm

Model SWJ-16B SWJ-16/SWJ-16A(K) SWJ-20
Max.tapping capacity(Castings/steel parts) M16/M12 M16/M12 M20/M16
Diameter of column 70mm 73mm 73mm
Spindle speeds range forward:240,380,570r/min forward:240-570rpm forward:160,250,380rpm
reverse:275,440,650r/min reverse:275-650rpm reverse:170,280,420rpm
Max.distance spindle nose to worktable 492/450mm 400mm
Max.distance spindle nose to base 500mm 676mm 676mm
Distance spindle axis to column surface 184.5mm 183mm 183mm
Spindle taper B18 B18 B18
Spindle travel 50mm 50mm 50mm
Head stock vertical travel 395mm 300mm
Dimension of worktable surface 270x280mm/320mm 300x310mm
Dimension of base worktable surface 250x300mm 254x237mm 270x280mm
Overall height 1030mm 1230mm 1235mm
Motor 750W 750W 1100W,910rpm
G.W./N.W. 118/90kg 120/102kg 199/161kg
Ship measurement 83x49x87cm 79x46x134cm 85x60x128cm
