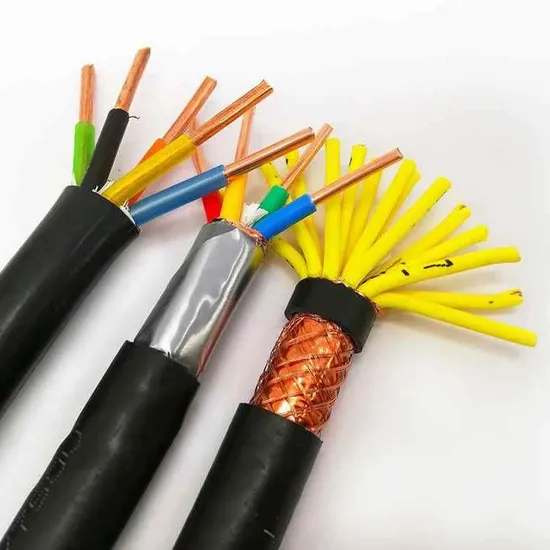

Precision-Made Multicore Kvv Industrial Control Cable

US$1.18 1,000 Meters (MOQ)

Basic Info.

Type
Low Voltage
Wire Core Material
Red Copper Wire
Certification
RoHS, CE, ISO9001, CCC, CCS, VDE
Usage
Building Wire Home Appliances
Place of Origin
Tianjin, China
Service
ODM OEM Accepted
Model Number
Kvv 7*1mm²
Feature
High Resistance
MOQ
1000 M
Brand Name
Tianyuan
Insulation Material
Pure Copper and Insulating Sheath
Packing
Customers Customized
Product Name
Wire and Cable
Model
Kvv 7*1mm²
Conductor Material
Copper
Transport Package
Wooden Box or Carton, According to Customer′s Cust
Trademark
Tianyuan
Origin
China

Product Description

Product Description Product ParametersKVVR Soft Copper Control Cable: Flame Retardant and Durable
Rated voltage: U/U:450/750 VLong-term operating temperature: -20 °C to +70 °CRecommended bending radius: not less than 6 times the outer diameterExecution standards: GB/T9330-2020Conductor specifications: 0.98 mm / 1.13 mm / 1.38 mm / 1.76 mm / 2.22 mmInsulation thickness: 0.6mm/0.7mm/0.8mmCable wrapping tape: 0.07mmSheath thickness: 1.2mm ~ 1.7mmMobile performance: KVVR cable with soft copper conductorCombustion performance: Flame retardant, fire resistant, halogen-free, low smoke, low toxicity options available.Rated voltage: U/U:450/750 VLong-term operating temperature: -20 °C to +70 °CRecommended bending radius: not less than 6 times the outer diameterExecution standards: GB/T9330-2020Conductor specifications: 0.98 mm / 1.13 mm / 1.38 mm / 1.76 mm / 2.22 mmInsulation thickness: 0.6mm/0.7mm/0.8mmCable wrapping tape: 0.07mmSheath thickness: 1.2mm ~ 1.7mmMobile performance: KVVR cable with soft copper conductorCombustion performance: Flame retardant, fire resistant, halogen-free, low smoke, low toxicity options available.
serial numberType number gauge (mm²)Approximate outer diameter of cable (mm)Approximate cable weight (kg/km)
1-2KVV 450/750V 2×0.757.258.7
2-2KVV 450/750V 2×17.566.0
3-2KVV 450/750V 2×1.58.484.6
4-2KVV 450/750V 2×2.59.6115.3
5-2KVV 450/750V 2×410.5151.1
6-3KVV 450/750V 3×0.757.569.6
7-3KVV 450/750V 3×17.979.3
8-3KVV 450/750V 3×1.58.8103.3
9-3KVI 450/750V 3×2.510.1152.2
10-3KVV 450/750V 3×411.1203.7
11-4KVV 450/750V 4×0.758.184.7
12-4KVV 450/750V 4×18.597.3
13-4KVV 450/750V 4×1.59.6128.5
14-4KVV 450/750V 4×2.511.0189.7
15-4KVV 450/750V 4×412.1256.7
16-5KVV 450/750V 5×0.758.7100.4
17-5KVV 450/750V 5×19.1116.1
18-5KVV 450/750V 5×1.510.4154.5
19-5KVV 450/750V 5×2.512.0220.4
20-5KVV 450/750V 5×413.8330.5
21-7KVV 450/750V 7×0.759.4125.0
22-7KVV 450/750V 7×19.9146.0
23-7KVV 450/750V 7×1.511.2196.8
24-7KVV 450/750V 7×2.513.6303.4
25-7KVV 450/750V 7×415.0414.6
26-8KVV 450/750V 8×0.7510.4143.8
27-8KVV 450/750V 8×110.9168.0
28-8KVV 450/750V 8×1.512.5227.0
29-8KVV 450/750V 8×2.515.1349.8
30-8KVV 450/750V 8×416.7478.2
31-10KVV 450/750V 10×0.7511.6173.8
32-10KVV 450/750V 10×112.2204.0
33-10KVV 450/750V 10×1.514.7297.2
34-10KVV 450/750V 10×2.517.0427.0
35-10KVV 450/750V 10×418.9586.7
36-12KVV 450/750V 12×0.7512.0195.9
37-12KVV 450/750V 12×112.6231.0
38-12KVV 450/750V 12×1.515.1336.5
39-12KVV 450/750V 12×2.517.6487.5
40-12KVV 450/750V 12×419.9693.5
41-14KVV 450/750V 14×0.7512.6222.0
42-14KVV 450/750V 14×113.8281.8
43-14KVV 450/750V 14×1.515.8382.5
44-14KVV 450/750V 14×2.518.4557.2
45-14KVV 450/750V 14×420.9794.4
46-16KVV 450/750V 16×0.7513.8268.0
47-16KVV 450/750V 16×114.5315.4
48-16KVV 450/750V 16×1.516.7429.8
49-16KVV 450/750V 16×2.519.8647.1
50-16KVV 450/750V 16×422.0897.5
51-19KVV 450/750V 19×0.7514.5304.8
52-19KVV 450/750V 19×115.3360.1
53-19KVV 450/750V 19×1.517.5493.3
54-19KVV 450/750V 19×2.520.9744.9
55-19KVV 450/750V 19×423.21038.9
56-24KVV 450/750V 24×0.7516.7379.2
57-24KVV 450/750V 24×117.6449.2
58-24KVV 450/750V 24×1.520.8636.9
59-24KVV 450/750V 24×2.524.3934.4
60-24KVV 450/750V 24×427.11306.5
serial numberModel Specifications
(mm²)		OD(outer diameter)(mm)weight(kg/km)
1-1YJV320.6/1kV 1×1.59.0163.2
2-1YJV320.6/1kV 1×2.59.4180.3
3-1YJV320.6/1kV 1×49.9206.6
4-1YJV32 0.6/1kV 1×610.4237.3
5-1YJV320.6/1kV 1×1011.5301.9
6-1YJV320.6/1kV 1×1612.5381.4
7-1YJV320.6/1kV 1×2514.1504.8
8-1YJV320.6/1kV 1×3516.1728.8
9-1YJV32 0.6/1kV 1×5017.2853.3
10-1YJV320.6/1kV 1×7019.31117.1
11-1YJV320.6/1kV 1×9521.81532.8
12-1YJV320.6/1kV 1×12023.71822.5
13-1YJV320.6/1kV 1×15025.82156.2
14-1YJV320.6/1kV 1×18527.82577.4
15-1YJV320.6/1kV 1×24030.43211.2
16-1YJV320.6/1kV 1×30033.03863.5
17-1YJV320.6/1kV 1×40037.65037.0
18-2YJV320.6/1kV 2×1.512.5277.4
19-2YJV320.6/1kV 2×2.513.3318.8
20-2YJV320.6/1kV 2×414.2372.0
21-2YJV32 0.6/1kV 2×616.1543.3
22-2YJV32 0.6/1kV 2×1017.3643.9
23-2YJV32 0.6/1kV 2×1619.3827.7
24-2YJV32 0.6/1kV 2×2523.41267.2
25-2YJV32 0.6/1kV 2×3525.61542.8
26-2YJV320.6/1kV 2×5029.11932.4
27-2YJV32 0.6/1kV 2×7033.92748.3
28-2YJV320.6/1kV 2×9537.83453.2
29-2YJV320.6/1kV 2×12042.04194.5
30-2YJV320.6/1kV 2×15046.95335.4
31-2YJV320.6/1kV 2×18551.46378.4
32-3YJV320.6/1kV 3×1.513.0306.7
33-3YJV320.6/1kV 3×2.513.8357.5
34-3YJV320.6/1kV 3×415.7527.7
35-3YJV32 0.6/lkV 3×616.7625.4
36-3YJV320.6/1kV 3×1018.1761.6
37-3YJV320.6/1kV 3×1620.3997.9
38-3YJV320.6/1kV 3×2524.61535.4
39-3YJV320.6/1kV 3×3527.21909.4
40-3YJV320.6/1kV 3×5030.72413.5
41-3YJV320.6/1kV 3×7035.83417.2
42-3YJV320.6/1kV 3×9539.74354.3
43-3YJV320.6/1kV 3×12044.75360.9
44-3YJV320.6/1kV 3×15049.86835.1
45-3YJV320.6/1kV 3×18554.68211.8
46-4YJV320.6/1kV 4×1.513.7342.0
47-4YJV320.6/1kV 4×2.514.6407.3
48-4YJV320.6/1kV 4×416.7600.4
49-4YJV32 0.6/1kV 4×617.8717.8
50-4YJV320.6/1kV 4×1019.5902.0
51-4YJV32 0.6/1kV 4×1622.81330.6
52-4YJV32 0.6/1kV 4×2526.61845.0
53-4YJV32 0.6/1kV 4×3529.72341.8
54-4YJV32 0.6/1kV 4×5034.43198.6
55-4YJV32 0.6/1kV 4×7039.94310.2
56-4YJV32 0.6/1kV 4×9544.25520.6
57-4YJV32 0.6/1kV 4×12050.07133.4
58-5YJV32 0.6/1kV 5×1.514.5382.8
59-5YJV320.6/1kV 5×2.516.5569.4
60-5YJV320.6/1kV 5×417.7685.1
61-5YJV320.6/1kV 5×619.0822.6
62-5YJV320.6/1kV 5×1021.91184.6
63-5YJV320.6/1kV 5×1624.61567.5
64-5YJV320.6/1kV 5×2529.32205.3
65-5YJV32 0.6/1kV 5×3533.23021.8
66-5YJV320.6/1kV 5×5038.03877.1
67-5YJV32 0.6/1kV 5×7043.85176.1
68-529 0.6/1kV 5×9549.37038.8
69-5YJV320.6/1kV 5×12054.98575.4
70-3-1YJV320.6/1kV 3×1.5+1×113.6335.2
71-3-1YJV320.6/1kV 3×2.5+1×1.514.4391.0
72-3-1YJV320.6/1kV 3×4+1×2.516.4582.7
73-3-1YJV320.6/1kV 3×6+1×417.6695.6
74-3-1YJV320.6/1kV 3×10+1×618.9847.7
75-3-1YJV320.6/1kV 3×16+1×1022.21253.3
76-3-1YJV320.6/1kV 3×25+1×1625.71728.4
77-3-1YJV320.6/1kV 3×35+1×1628.32112.2
78-3-1YJV320.6/1kV 3×50+1×2532.12710.9
79-3-1YJV320.6/1kV 3×70+1×3537.13804.9
80-3-1YJV320.6/1kV 3×95+1×5042.04957.1
81-3-1YJV320.6/1kV 3×120+1×7048.16509.4
82-3-1YJV320.6/1kV 3×150+1×7051.87587.1
83-3-2YJV320.6/1kV 3×1.5+2×114.3366.2
84-3-2YJV320.6/1kV 3×2.5+2×1.516.1536.2
85-3-2YJV320.6/1kV 3×4+2×2.517.2641.5
86-3-2YJV320.6/1kV 3×6+2×418.5770.4
87-3-2YJV320.6/1kV 3×10+2×620.0939.9
88-3-2YJV320.6/1kV 3×16+2×1023.51416.4
89-3-2YJV320.6/1kV 3×25+2×1627.21933.9
90-3-2YJV320.6/1kV 3×35+2×1629.62318.0
91-3-2YJV320.6/1kV 3×50+2×2534.73268.8
92-3-2YJV320.6/1kV 3×70+2×3540.04337.8
93-3-2YJV320.6/1kV 3×95+2×5044.65550.4
94-3-2YJV320.6/1kV 3×120+2×7051.07372.5
95-4-1YJV320.6/1kV 4×1.5+1×114.4376.2
96-4-1YJV320.6/1kV 4×2.5+1×1.516.3557.4
97-4-1YJV320.6/1kV 4×4+1×2.517.5658.1
98-4-1YJV320.6/1kV 4×6+1×418.8791.3
99-4-1YJV320.6/1kV 4×10+1×621.41124.7
100-4-1YJV320.6/1kV 4×16+1×1024.11491.2
101-4-1YJV320.6/1kV 4×25+1×1628.52093.7
102-4-1YJV320.6/1kV 4×35+1×1631.22579.0
103-4-1YJV320.6/1kV 4×50+1×2536.13544.3
104-4-1YJV320.6/1kV 4×70+1×3542.04773.3
105-4-1YJV320.6/1kV 4×95+1×5047.76504.2
106-4-1YJV320.6/1kV 4×120+1×7053.17976.7
Packaging & Shipping Our Advantages Extensive Production Network
With factories strategically located in Hebei, Tianjin, and other regions, we possess flexible production capabilities and a stable supply chain.
Rich Experience in International Trade
Since establishing a dedicated international trade division in 2023, we have successfully expanded into global markets and built long-term, stable partnerships with clients worldwide.
Broad Industry Coverage
Our business spans over ten industries, including coal mining, subway systems, telecommunications, and more, demonstrating our versatility and industry expertise.
Reliable Product Quality
Leveraging advanced production equipment and strict quality management systems, we ensure that every product meets international standards, earning the trust of our clients.
Professional Services
Our team offers one-stop solutions from design to production and delivery, providing efficient and professional service to meet customer needs.
Company Profile
Beijing Tianyuan Rongli Technology Co., Ltd. has established factories in Hebei, Tianjin, and other regions. Since 2023, the company has set up a specialized international trade division. Currently, we serve clients worldwide across more than ten industries, including coal mining, subway systems, telecommunications, and many others, showcasing our diverse and comprehensive capabilities.
FAQQ: Do you offer free samples?
A: Yes, the sample is free and the express charge would be collected on your side.
Q: How about your delivery time?
A: Generally, it takes 2-3 weeks after receiving the advance payment.
Q: What is your payment terms?
A: T/T 50% as deposit, Balance 50% paid before leaving the factory.
Q: What is the shipping port?
A: We ship the goods via Tianjin Port.
Q: What are your main products?
A: Power cable, control cable, communication cable, etc.
Q: Can you produce according to customers' design?
A: Yes, we are a professional manufacturer. OEM and ODM are both welcome.
Q: How do you guarantee the quality of your products?
A: Each step is strictly controlled by the QC team to ensure all our products turn out great.
