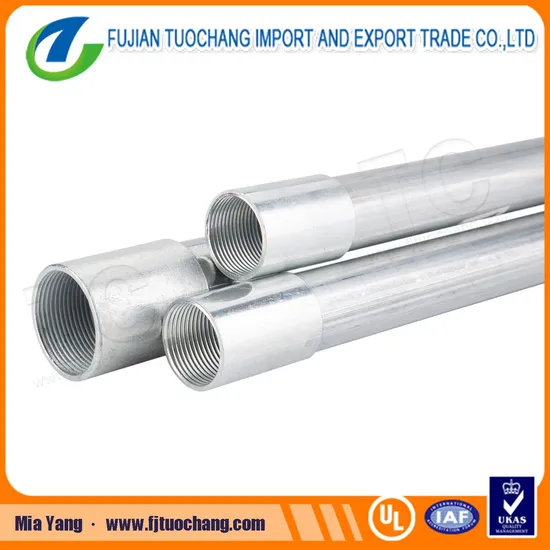

ANSI C80.6 UL 1242 IMC Galvanized Steel Conduit Tubes

Product Description

Product detail
Application: High quality hot-dip coil processing, uniform zinc coating, good finish inside and outside, wall surface is smooth, without spots and bubbles, corrosion resistance. Widely used in pharmaceutical, chemical and other flammable and explosive dangerous location lighting, mechanical equipment ,protective wire installation.

Specification:
1) Applicable Tolerances: Outside Diameter: ±0.13mm (0.005") Length: ±6.35mm (0.25")
2) Customization: The wall thickness and length can be customized.
3) Available finishes: Pre-Galvanized or Hot dipped galvanized
4) Standard: American Standard ANSI C80.6-1983 UL1242
5) Application: Protect Cable Wire

A-1002 IMC Conduit (Intermediate metal conduit)
Trade Size	Outside Diameter		Wall Thickness		Length		Qty per Bundle
inch	inch	mm	inch	mm	ft	meter	pcs
1/2"	0.815	20.70	0.070	1.79	10	3.05	10
3/4"	1.028	26.10	0.075	1.90	10	3.05	10
1"	1.291	32.80	0.085	2.16	10	3.05	10
1-1/4"	1.638	41.60	0.085	2.16	10	3.05	5
1-1/2"	1.882	47.80	0.090	2.29	10	3.05	5
2"	2.358	59.90	0.095	2.41	10	3.05	5
2-1/2"	2.858	72.60	0.140	3.56	10	3.05	3
3"	3.476	88.30	0.072	3.56	10	3.00	2
4"	4.465	113.40	0.083	3.56	10	3.00	2

Company Profile
Specificalized in Strut channel & fittings, PVC coated flexible conduit, BS4568-1907, BS31-1940, IMC and EMT conduit and fittings, gi electrical box.

High quality and competitive price are our advantages. We have a professional subsidiary plant which established in 1998 and has a lot production experience, pay attention to every detail of quality from producing to shipping, providing high quality and competitive price with brand TOCA®.
In the past years, depending on high quality, competitive price and good service, our company has won customer's appreciation and trust. Exporting to European, American, Middle East, Southeast Asia, Afican and other countries and regions.
We are working hard to earn your business and cooperating with you!
Production Line
Certification
Inspection Process
Packing&Shipping
Exhibition
Our Service
1) Excellent Quality: The stable supply ofmaterials we used is good quality, and we pay more attention and strictly treat the quality from production and package.
2) Customized Service: We can customize the size and engraving service of the product according to the customer's needs.
3) Offering Best Price: We have professional factory, so our cost is low than others and you can get a favorable price from us.
4) Convenience For Purchasing: Customers can find conduit and all the related fittings here, and can get all the goods you need in a short time. Like set screw coupling/compression connectors/ strut clamps and so on.
5) Good Service: We have a professional sales and after sales team, so that provide you detailed information and timely after-sales service.
6) Delivery Time: We can easily control the quality, delivery time, packing details, printings to meet the requirement from our customers.
7) Technical Support: With keen insights into the market information, we provide the latest updates price of market and technical data support. Our well managed team of technocrats and qualified engineers have in depth industry knowledge in their respective domains and are well accustomed with varied industry specifications.
8) OEM : To bring you with better profits, we can also pack the products with your own brand to avoid the direct price competition.
