Hand-held Torsion Meter TM-204_1Nm 5Nm 20Nm

Product Details

Product Description

Product Description

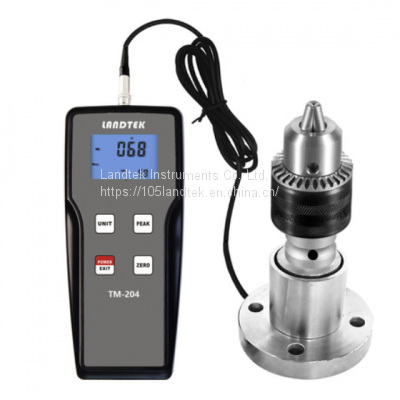

Hand-held Torsion MeterTM-204_1Nm 5Nm 20Nm
Features:
* High accuracy and high resolution.
* A variety of measuring units for choice, mutual conversion.
* With peak value hold function.
* Can use alkaline battery power; External power supply is also available.
Details:
Model:TM-204-1N.m
Force Range:±0.1kgf.m Resolution:0.001kgf.m
Force Range:±100gf.m Resolution:1gf.m
Force Range:±1N.m Resolution:0.01N.m
Force Range:±0.2Lbf.m Resolution:0.001Lbf.m
Standard three-jaw chuck size:0.6mm-6mm
Model:TM-204-5N.m
Force Range:±0.5kgf.m Resolution:0.001kgf.m
Force Range:±500gf.m Resolution:1gf.m
Force Range:±5N.m Resolution:0.01N.m
Force Range:±1.1Lbf.m Resolution:0.001Lbf.m
Standard three-jaw chuck size:1.5mm-13mm
Model:TM-204-20N.m
Force Range:±2.0kgf.m Resolution:0.001kgf.m
Force Range:±2000gf.m Resolution:1gf.m
Force Range:±20N.m Resolution:0.01N.m
Force Range:±4.4Lbf.m Resolution:0.001Lbf.m
Standard three-jaw chuck size:3mm-16mm
Accuracy:± 0.5%FS ± 1Digit
Unit:kgf, gf, N, Lbf
Measurement State:Peak Value Measurement, Real Time Measurement
Display:Four large LCD, large screen display
Power Off:10 Minutes Auto Power Off, Manual Power Off
Backlight
Blue Backlight:Safe Load 150%FS (Buzzer Alarm Over 110%FS)
Power Supply:2x1.5 AA(UM-3) Battery or 5V DC Power Supply
Operating Conditions:
Temperature: 0~40°C
Humidity:<80%
Surrounding:No Vibration Source or Corrosive Medium Around
Size:Main Unit: 211x80x36mm
The host weight:390g
GUANGZHOU LANDTEK INSTRUMENT CO LTD is the real professional manufacturer of meters and instruments in China.
To Lisa Li
Email / Skype: lisali0428@outlook.com
For more details,please feel free to contact Lisa.Thank you!

---
