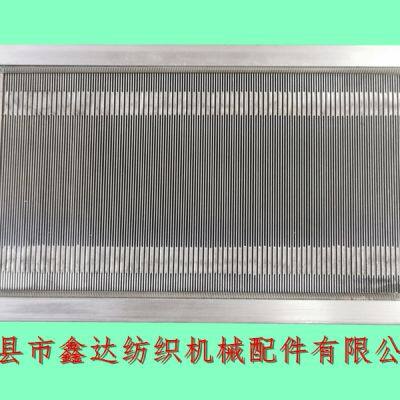

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Stainless Steel Split Reed Warping Machine Parts, Textile Accessories, Stainless Steel Reed, Textile Split Reed, small tin welded steel reeds (accessories for warping machines) made of stainless steel. Stainless Steel Split Reed For Warping Machine, The dimensions of the twisted reeds in the following figure are: total length 230mm, total height 145mm, and the length of the stainless steel reeds arranged is 216mm. The upper and lower beams (made of aluminum alloy) of the twisted reeds have the same dimensions: width 12mm, length 23cm, thickness 10mm, and the width of a single reed is 3.8mm.
Stainless steel split reed means that the reed blade of the steel reed is made of stainless steel, not all of which are made of stainless steel, and the reeds on both sides are made of A3 double layers, as shown in the following figure:
The process of hanging tin on stainless steel reeds is different from that of ordinary electric winding iron, and it is also different from using AB glue to hang glue on reeds. Warping Machine Parts, Textile Accessories, Stainless Steel Reed, Textile Split Reed, Our products can achieve stable combination of reeds and solder, stable use process and long service life. If you need to purchase warping machine reed, reed, stainless steel, solder reed, warping machine reed, warping machine equipment and other products, please contact Mr. Yang of our company to discuss cooperation matters. Welcome to visit.
The length of the two rows of soldering on the stainless steel split reed is 14mm, the interval is 71mm, the distance from the upper beam and the lower beam is 13mm, and the density is 20 meshes (20 holes in 1 inch, 40# of English reed).Splitting Reed, Steel Reed, Stainless Steel, Tin Welded Steel Reed, Warping Machine Reed.
>>
