US$5,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Table Travel
600/300/280 mm
Max.Tapping
Less Than M10
Machine
Hardened Guide Way
Transport Package
1600X1500X2270
Production Capacity
100 Sets/Month
Product Description

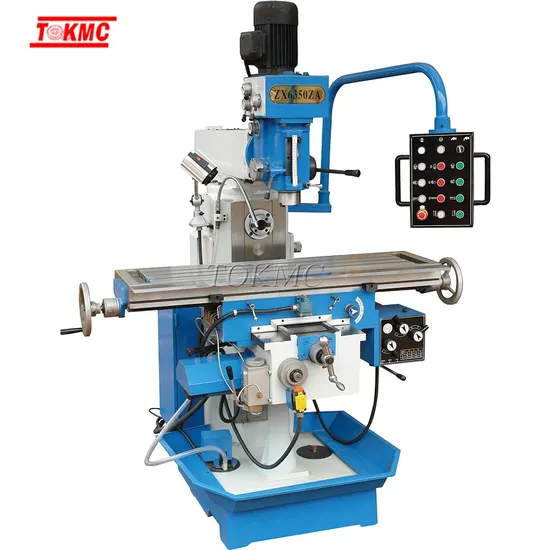

ZX6350ZA spindle motor 2.2KW Milling drilling machines
Rectangular table guideways with high stability.
Hardened and ground table surface.
Automatic feeds on X,Y axes,motorized lifting and lowering of table on Z axis.
Headstock swivels ±45°,vertical milling spindle auto-feeding.
| Item | X6332z | ZX6350ZA |
| Spindle taper | ISO40 | ISO40 |
| Distance from spindle to table | 90-490 | 90-370 |
| Distance from spindle to column | 200-550 | 200-550 |
| Spindle speeds | 90-2000(V) 40-1300(H) | 90-2000(V) 40-1300(H) |
| Table size | 1370×320 | 1250×320 |
| Table travel(X/Y/Z) | 720/300/400 | 600/300/280 |
| Feeding range of longitudinal,cross travel | 22-555 | 22-555 |
| Auto-feeding of Z-axis | 560 | 560 |
| T-slot(number-width-distance) | 3/14/70 | 3/14/70 |
| Main motor power | 2.2 | 2.2 |
| Overall dimension | 1700×1500×2270 | 1600×1500×2270 |
| N.W./G.W. | 1700/1880 | 1550/1700 |
>>
