US$200,000.00-300,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Asphalt Mixing Plant
Machining Process
Hydraulic
Vibrating Amplitude
1.1mm
Certification
ISO9001: 2000, CE
Rated Productivity
160t/H
Transport Package
According Customer′ S Requirements
Specification
12000*3800*4000mm
Packaging & Delivery
Package Size
3200.00cm * 150.00cm * 270.00cm
Package Gross Weight
39580.000kg
Product Description

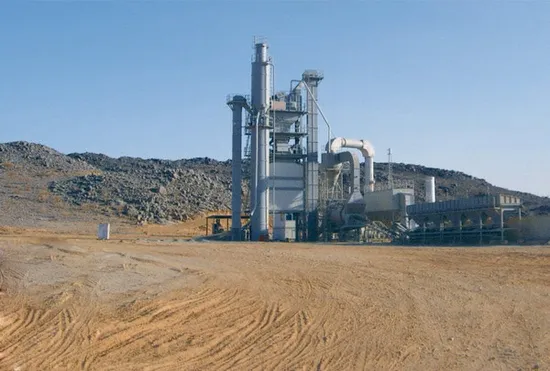

China Energy-Saving Asphalt Mixing Plant LB2000-160T/h Pavement Machinery
Configuration selling point The machine features a modular structure, allowing for easy installation and transportation. It is equipped with an efficient vibrating screen, a boiling-type mixing unit, and a long-life energy-saving drying drum. Additionally, it is equipped with a bag dust removal configuration for improved energy efficiency and environmental protection.
Ease of maintenance and operation comfort The machine is equipped with a maintenance-free and efficient linear vibrating screen. The main unit is designed with a centralized lubrication system and the operating system features dual-machine dual-control automatic control, and one-touch startup.
Adaptability to diverse working conditions The machine's core components offer stable performance and reliable quality, making it well-suited for asphalt concrete pavement construction on highways, municipal roads, airports, and docks.
Safe and secure Directly shipped from the factory with after-sales service.Technical engineers and professional consultants can solve all your worries.
Product Parameters
| Model | Capacity(Standard Conditions) | Mixer Capacity | Dust Remove Effect | Total Power | Fuel Consumption | Measurement Accuracy |
| Fuel Oil | Fuel Coal |
| LB700 | 60t/h | 750 kg | ≤20 mg/Nm³ | 178kW | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Filler: ±0.25% Bitumen: ±0.25% |
| LB1000 | 80t/h | 1000 kg | ≤20 mg/Nm³ | 285kW | 5.5-7 kg/t | 10kg/t |
| LB1200 | 100t/h | 1200 kg | ≤20 mg/Nm³ | 316kW | 5.5-7 kg/t | 10kg/t |
| LB1500 | 120t/h | 1500 kg | ≤20 mg/Nm³ | 380kW | 5.5-7 kg/t | 10kg/t |
| LB2000 | 160t/h | 2000 kg | ≤20 mg/Nm³ | 470kW | 5.5-7 kg/t | 10kg/t |
| LB2500 | 200t/h | 2500 kg | ≤20 mg/Nm³ | 547kW | 5.5-7 kg/t | 10kg/t |
| LB3000 | 240t/h | 3000 kg | ≤20 mg/Nm³ | 700kW | 5.5-7 kg/t | 10kg/t |
| LB4000 | 300t/h | 4000 kg | ≤20 mg/Nm³ | 870kW | 5.5-7 kg/t | 10kg/t |
| LB5000 | 400t/h | 5000 kg | ≤20 mg/Nm³ | 960kW | 5.5-7 kg/t | 10kg/t |
Detailed Photos
