China 0.7x~4.5x 1" Coaxial Linear Zoom Telecentric Lenses 0.002% Low Distortion Machine Vision FA Industrial Megapixel Lens Measurement Camera

Product Details

Product Description

Product Description
/products_detail.asp?id=1486&cataid=163&Cataupper=0&list=43
/products_detail.asp?id=1487&cataid=163&Cataupper=0&list=41 ( Coaxial )

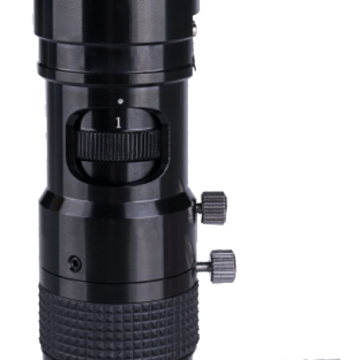

0.7x~4.5x 1" Coaxial Linear Zoom Telecentric Lenses 0.002% Low Distortion Machine Vision FA Industrial Megapixel Lens Measurement Camera
High resolution : 3.8μm at 4.5x
Large format: 1" size covering 2/3", 1/2" camera
Magnification : 0.7x ~ 4.5x
Low distortion : Low distortion 0.002% for measurement and vision
Application : Automation, machine vision, medical, life science, measurement.

1. Focus type Linear Zoom Lens 2. Co-axial Focus type Linear zoom lens

Model	STZ0745C-M / STZ0745CF-M
Zoom range	0.7x ~ 4.5x
Magnification(x)	0.7x	1.0x	2.0x	3.0x	4.0x	4.5x
Resolution	11.2μm	9.6μm	6.5μm	4.9μm	4.0μm	3.8μm
Depth of field (mm)	2.4mm	1.3mm	0.4mm	0.2mm	0.1mm	0.1mm
Number aperture	0.03	0.035	0.051	0.068	0.083	0.088
Distortion	0.04%	0.079%	0.07%	0.064%	0.004%	0.002%
Angle of view °	2/3"		21*17*12.5 / 3.25*2.6*1.95
	1/2"		15.1*12.1*9.06 / 2.37*1.9*1.42
	1/3"		11.3*9.1*6.8 / 1.8*1.42*1.1
Working distance	93 +/- 2mm
Format	1" (Φ16)
Mount	C / F Mount
Humidity	+10 ~ 35°C
Temperature	20~80% RH ( No Condensation )
Marks	Focus function, coaxial function

---
