Stainless Steel Tubing Grade 201 304L 316L 310S 321 309S Stainless Steel Pipe/Tube Bright Brushed Polished Cold/Hot Rolled Welded/Seamless Stainless Steel Pipe

Product Description

Tubing/Casing Our state-of-the-art factory specializes in the manufacture of high-quality Casing and Tubing:Our products adhere strictly to API SPEC 5CT, ensuring unparalleled quality.Available in Steel grades: J55, K55, L80, N80, C95, P110 - tailored for diverse applications.Outer Diameter Range for Tubing: Spanning from 2-3/8" to 4-1/2" (EUE/NU) for optimal flexibility.Casing Range: From 4-1/2" to an extensive 20", meeting various industrial needs.Threads available in BTC, LTC, STC, offering robust connection solutions.Length range options: R1, R2, R3 to suit different operational requirements.If you find our products intriguing, do not hesitate to get in touch with us for more information.

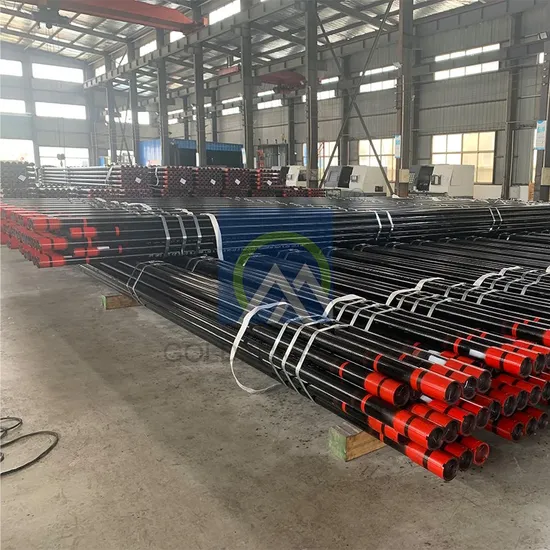

Casing pipe
OD mm	Ib/ft	Grade	W.T	short	long	buttress
114.30(4 1/2")	9.50	H,J,K	5.21	YES
	10.50	J,K	5.69	YES		YES
	11.60	J,K,C,L,N,P	6.35	YES	YES	YES
	13.50	C,L,N,P	7.37		YES	YES
	15.10	P,Q	8.56		YES	YES
127.00(5")	11.50	J,K	5.59	YES
	13.00	J,K	6.43	YES	YES	YES
	15.00	J,K,C,L,N,P	7.52	YES	YES	YES
	18.00	C,L,N,P,Q	9.19		YES	YES
	21.40	C,L,N,P,Q	11.10		YES	YES
	23.20	C,L,N,P,Q	12.14		YES	YES
	24.10	C,L,N,P,Q	12.70		YES	YES
139.70(5 1/2")	14.00	H,J,K	6.20	YES
	15.50	J,K	6.98	YES	YES	YES
	17.00	J,K,C,L,N,P	7.72	YES	YES	YES
	20.00	C,L,N,P	9.17		YES	YES
	23.00	C,L,N,P,Q	10.54		YES	YES
168.28(6 5/8")	20.00	H,J,K	7.32	YES	YES	YES
	24.00	J,K,C,L,N,P	8.94	YES	YES	YES
	28.00	C,L,N,P	10.59		YES	YES
	32.00	C,L,N,P,Q	12.06		YES	YES
177.80(7")	20.00	H,J,K	6.91	YES
	23.00	J,K,C,L,N	8.05	YES	YES	YES
	26.00	J,K,C,L,N,P	9.19	YES	YES	YES
	29.00	C,L,N,P	10.36		YES	YES
	32.00	C,L,N,P	11.51		YES	YES
	35.00	C,L,N,P,Q	12.65		YES	YES
	38.00	C,L,N,P,Q	13.72		YES	YES
193.68(7 5/8")	24.00	H	7.62	YES
	26.40	J,K,C,L,N	8.33	YES	YES	YES
	29.70	C,L,N,P	9.52		YES	YES
	33.70	C,L,N,P	10.92		YES	YES
	39.00	C,L,N,P,Q	12.70		YES	YES
	42.80	C,L,N,P,Q	14.27		YES	YES
	45.30	C,L,N,P,Q	15.11		YES	YES
	47.10	C,L,N,P,Q	15.88		YES	YES
196.85(7 3/4")	46.10	C,L,N,P,Q	15.11
219.08(8 5/8")	24.00	J,K	6.71	YES
	28.00	H	7.72	YES
	32.00	H,J,K	8.94	YES	YES	YES
	36.00	J,K,C,L,N	10.16	YES	YES	YES
	40.00	C,L,N,P	11.43		YES	YES
	44.00	C,L,N,P	12.70		YES	YES
	49.00	C,L,N,P,Q	14.15		YES	YES
244.48(9 5/8")	32.30	H	7.92	YES
	36.00	H,J,K	8.94	YES	YES	YES
	40.00	J,K,C,L,N	10.03		YES	YES
	43.50	C,L,N,P	11.05		YES	YES
	47.00	C,L,N,P,Q	11.99		YES	YES
	53.50	C,L,N,P,Q	13.84		YES	YES
273.05(10 3/4")	32.75	H	7.09	YES
	40.50	H,J,K	8.89	YES		YES
	45.50	J,K	10.16	YES		YES
	51.00	J,K,C,L,N,P	11.43	YES		YES
	55.50	C,L,N,P	12.57	YES		YES
	60.70	P,Q	13.84	YES		YES
	65.70	P,Q	15.11	YES		YES
298.45(11 3/4")	42.00	H	8.46	YES
	47.00	J,K,M	9.53	YES		YES
	54.00	J,K,M	11.05	YES		YES
	60.00	J,K,M,L,N,C,P,Q	12.42	YES		YES
339.7(13 3/8")	48.00	H	8.38	YES
	54.50	J,K	9.65	YES		YES
	61.00	J,K	10.92	YES		YES
	68.00	J,K,C,L,N,P	12.19	YES		YES
	72.00	C,L,N,P,Q	13.06	YES		YES
406.40(16")	65.00	H	9.53	YES
	75.00	J,K,M	11.13	YES		YES
	84.00	J,K,M	12.57	YES		YES
473.08(18 5/8")	87.50	H,J,K,M	11.05	YES	YES	YES
508.00(20")	94.00	H,J,K	11.13	YES	YES	YES
	106.50	J,K	12.70	YES	YES	YES
	133.00	J,K	16.13	YES	YES	YES

TUBING PIPES
STANDARD: API SPEC 5CT
Outside Diameter Specified(mm)	Nominal Weight Threads & Coupling	Steel Grade	Wall Thickness (mm)	Type of Thread
	Ib/ft			N U	E U
60.32(2 3/8")	4.70	H,J,L,P	4.83	YES	YES
	5.80	C,N,L,P	6.45	YES	YES
	5.95	L,P	6.45	YES	YES
	7.35	C,L	8.53		YES
	7.45	L,P	8.53		YES
73.02(2 7/8")	6.40	H,C,N,L,P	5.51	YES
	6.50	H,C,N,L,P	5.51		YES
	7.80	C,N,L,P	7.01	YES
	7.90	C,N,L,P	7.01		YES
	8.60	C,N,L,P	7.82	YES
	8.70	C,N,L,P	7.82		YES
	9.45	L,C	8.64		YES
88.90(3 1/2")	9.20	H,J,C,N,L,P	6.45	YES
	9.30	H,J,C,N,L,P	6.45		YES
	10.20	H,J,C,N,L	7.34	YES
	12.70	C,N,L,P	9.52	YES	YES
	12.95	L,P	9.52		YES
101.60(4")	9.50	H,J,C,N,L	5.74	YES
	11.00	H,J,C,N,L	6.65		YES
114.30(4 1/2")	12.60	H,J,L,N,C,T	12.75	YES
	12.75	H,J,L,N,C,T	12.75		YES

PREMIUM CONNECTION/ RTN-14AM STRUCTURE • Featuring a coupling connection type that equals or surpasses the pipe body strength. • Enhanced buttress thread ensures high connecting efficiency and ease of processing. Sizes: 2 3/8"-2 7/8" with 8 TPI, 3 1/2"-4 1/2" with 6 TPI, 5" and over with 5 TPI. • Taper to taper seal structure with a negative angle torque shoulder boosts sealing capability. • Reverse torque shoulder enhances load-bearing connection capacity. • Seamless wall alignment between pipe body and coupling. PERFORMANCE • Achieves connection strength comparable to pipe body strength with standard coupling. • Low angle taper to taper interference seal, fortified by reverse angle torque shoulder, provides high sealing reliability. • The reverse torque shoulder ensures high resistance to compression, bending, and over-torque stresses. • Inner flat design minimizes gas and liquid turbulence, reducing energy loss. • Anti-galling design allows multiple makeup and breakout cycles. PREMIUM CONNECTION/ RTV-200P STRUCTURE • Innovative coupling design: Critical cross-sections of coupling surpass those of the pipe body for added strength. • Features a modified hook thread profile with a -4° reverse angle on the load flank and a 10° angle on the lead flank, delivering superior tension strength and enhanced compression resistance. Sizes: 2 3/8"-2 7/8" with 8 TPI, 3 1/2"-4 1/2" with 6 TPI, 5"-7 3/4" with 5 TPI, 8 5/8" and up with 4 TPI. • Patented taper metal-to-metal seal system guarantees exceptional gas-tight sealing under severe conditions, such as bending and temperature variations. • Reverse angle torque shoulder provides precise torque stopping, ensuring accurate power-tight makeup and minimizing hoop stresses. PERFORMANCE• Connection strength rivals that of the pipe body with standard coupling. • Seal property is enhanced by a low angle taper to taper interference seal, reinforced by reverse angle torque shoulder, ensuring exceptional seal reliability. • Hook thread and reverse torque shoulder design offer high resistance to compression, bending, and over-torque loads. • Inner flat design significantly reduces gas and liquid turbulence, optimizing energy efficiency. • The anti-galling feature permits multiple makeup and breakout cycles ensuring long-lasting usability.

---
