CNC Slant Bed Lathe Stc5052D with Rotary Chunk Dual Tool Holders Cutting Machine Milling Machine Lathe

US$18,500.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
STC5052D
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Condition
New
CNC System
GSK
Chuck

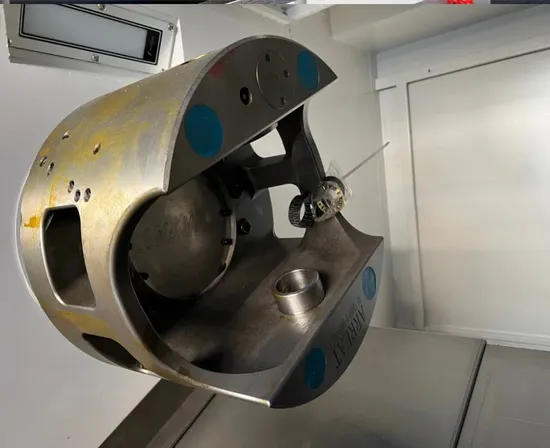

Rotary Chuck 265/400mm
Optional CNC System
Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
Optional Chuck
Hydraulic Chuck
Transport Package
Seaworthy Packing
Specification
2680*1695*1800 mm
Trademark
JT
Origin
China
HS Code
8458110000
Production Capacity
1500 Sets/Year

Product Description


The STC5052D is a versatile and high-performance CNC machine, equipped with a rotary chuck and dual tool holders for enhanced machining capabilities. It offers flexibility with interchangeable control systems, allowing users to choose from GSK, Fanuc, Siemens, Mitsubishi, and other leading CNC controllers to suit their specific operational needs. Designed for precision and efficiency, the STC5052D is ideal for complex machining tasks, ensuring high productivity and reduced setup times in a wide range of applications.
Product Parameters

ITEM UNIT STC5052D
Maximum rotation diameter on the bed mm φ500
Maximum turning diameter on the slide mm φ300
Spindle Spindle end type A2-8
Spindle through hole diameter mm φ82
Maximum spindle speed r/min 1600
Diameter of the through hole of the drawn tube mm φ68
Chuck 400mm rotary chuck
Main motor main motor power kw 15
Two Axis X/Z axis fast moving speed m/min 15/20
X-axis travel mm 380
Z-axis travel mm 550
Tool holder Tool holder form Four workstations
Knife Square mm 25*25
Tool bar diameter mm φ32
Accuracy Precision It6
Roundness of workpiece mm 0.005/φ70
Processing surface roughness um Ra1.6
X/Z repeat positioning accuracy mm 0.01/0.011
General Rules Machine net weight kg 2800
Machine tool dimensions mm 2680*1695*1800
