Iron Ore Fertilizer Disk Granulator Machine for Sale

Product Description

Fertilizer Disk Granulator Machine for Mineral Powder
Production introduction:
The disc organic fertilizer granulator machine (also known as the ball plate) adopts the whole circular arc structure, and the granulating rate can reach more than 93%. It has three discharging ports, which is convenient for discontinuous production, greatly reducing the labor intensity and improving the labor efficiency. The reducer and motor use flexible belt drive to start smoothly, slow down the impact force and improve the service life of the equipment. The plate bottom is strengthened by a plurality of radiant steel plates, which is durable and never deformed. It is an ideal equipment for organic fertilizer and compound fertilizer, which is designed with thick, heavy and strong base, so it has no fixed anchor bolts and smooth operation.
Advantages of disc granulator fertilizer: 1.High efficiency.The circular granulation machine adopts the whole circular arc structure, the granulation rate can reach more than 93%.
2.Long service life.
3.The bottom of granulation plate is strengthened by a number of radiation steel plates, which are durable and never deformed.
4.Granulator plate lined with high strength glass steel, anti-corrosion and durable.
5.The raw materials have wide applicability. It can be used for the granulation of various raw material, like compound fertilizer, medicine, chemical industry, feed, coal, metallurgy.
6.Reliable operation and low cost. The machine's power is small, and operation is reliable; it has no three waste discharge, the operation is stable, and the maintenance is convenient.
Application:
Ceramic sand,ore dressing,organic/inorganic compound fertilizer or single-quality fertilizer

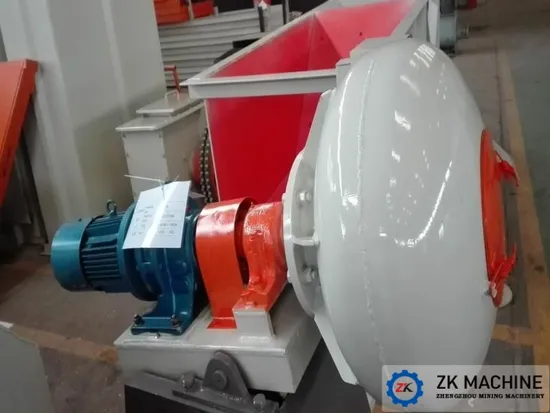

The disc granulator is composed by disc, driving device, rack, pedestal, scraper etc. The structure feature is:
1. The disc bottom reinforced by multiple radiation steel plate with high strength and stiffness
2. The driving gear adopts high frequency quenching process with long life time.
3. The reducer and motor adopt flexible belt driving with smooth start and low impact.
4. The driving system installed bridging device which can reduce the impact between gear and reducer, and increase the equipment running stability, at the same time the main accessories working life also increased.
5. The auxiliary power consumption was reduced by the unique unpowered scraper device.
Technology Specifications: Unpowered scraper disc granulator technical parameters

Type	Disc Granulator				Power(kW)
	Dia (mm)	Height(mm)	Slope (°)	Speed(r/min)
PQ10W	1000	250	35-55	25	4.5
PQ16W	1600	300	35-55	19	4.5
PQ22W	2200	500	35-55	14	15
PQ25W	2500	500	35-55	14.25	15
PQ28W	2800	640	35-55	11.81	18.5
PQ32W	3200	640	40-50	9.06	22
PQ36W	3600	700	40-50	8	22
PQ42W	4200	800	40-50	7	30

Powered scraper disc granulator technical parameters

Type	Disc Granulator				Main Power(kW)	Weight(t)
	Dia (mm)	Height(mm)	Slope (°)	Speed(r/min)
PQ10	1000	250	35-55	25	4.5	1.8
PQ16	1600	300	35-55	19	4.5	2.7
PQ22	2200	500	35-55	14	15	3.9
PQ25	2500	500	35-55	14.25	15	5.2
PQ28	2800	640	35-55	11.81	18.5	5.7
PQ32	3200	640	40-50	9.06	22	7.3
PQ36	3600	700	40-50	8	22	8.6
PQ42	4200	800	40-50	7	30	11.2

FAQ:
1 how long is the product warranty period ?
A: the product warranty period is 12 months
2. I am a foreign customers, if the machine works wrong, how your company resolved ?
A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.
3. how much is MOQ of your machine?
A:our machines MOQ is 1 set and also support the mixed batch.
4.Where can we buy the machine's parts?
A: Our company can provide machines for your any time
Our service:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory?level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.

---
