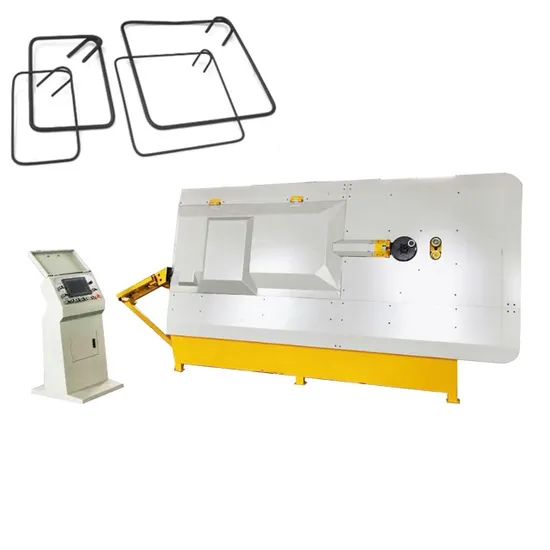

Automatic Stirrup Bending Machine CNC Stirrup Bending Machine

Product Description

Product Description Introduction of automatic stirrup bending machine cnc stirrup bending machine 4-14 cnc automatic 2d reinforced stirrup bending machine form wire rebar stirrup bending machine CNC rebar stirrup bending machine F10 CNC round steel bar cutting and bending machine steel rod bender Factory custom services 2D wire bending machine/ Stirrup bending machine Good quality cnc wire bending machine
the positioning square bar on the working face is equipped with multiple locating shaft holes.Because the two-stage brake motor is directly connected to the reducer for deceleration,the ratio of input and output revolutions is accurate,and the bending speed is stable and accurate.The speed can be automatically changed by electronic control and the brake ensures the bending angle.The steel bars can be bent in both directions by using the forward and reverse rotation of the motor.The central axis can be replaced,easy to maintain and can be controlled intelligently.
F12 4-14 cnc automatic 2d reinforced stirrup bending machine form wire rebar stirrup bending machine can process single wire 5-12mm,double wire 5-10mm.
Product features of automatic stirrup bending machine cnc stirrup bending machine CNC round steel bar cutting and bending machine CNC rebar stirrup bending machine F10 steel rod bender Factory custom services 2D wire bending machine/ Stirrup bending machine Good quality cnc wire bending machine
1. Automatic stirrup production equipment,with straightening function,one machine for multiple purposes.
2. With NC control,it can process square,rectangle,diamond and polygon with various sizes and specifications.
3. From wire rod raw materials to stirrup products,it can process cold and hot high strength wire rod reinforcement.
4. High production efficiency,equivalent to 20 to 30 labor.
5. The equipment is easy to use,only need one person to operate,save a lot of labor.
6. Saving raw materials,no damage of steel bar head in continuous work.
7. It can work in narrow area.
8. The cost of equipment maintenance and energy consumption is very low.
9. Full range of models,price concessions.
10. Factory direct supply,quality assurance
Product Parameters The parameter of CNC rebar stirrup bending machine CNC round steel bar cutting and bending machine F10 steel rod bender Factory custom services 2D wire bending machine/ Stirrup bending machine Good quality cnc wire bending machine

Model	F12 CNC rebar stirrup bending machine	Average powder	8kw/h
Single rebar Diameter	5-12mm	Processing number	≤2
Double rebar diameter	5-10mm	Equipment powder	25kw
Max Bending Angle	180°	Steel processing shapes	500 kinds
Centre diameter of pin holes	16 18 20	Gas circuit voltage	0.6mpa
Max.Towing Speed	120m/min	work condition temperature	-5°--+40°
Max.bending machine	1000°sec	Machine Size	3400X1500X1800MM
Length accuracy	±2mm	Total net weight	1900kg
Angular accuracy	±2°	Working Capacity	6000pcs/h

Detailed Photos The detail photos of CNC rebar stirrup bending machine CNC round steel bar cutting and bending machine F10 steel rod bender
Forming workpiece CNC rebar stirrup bending machine CNC round steel bar cutting and bending machine F12 steel rod bender
Packaging & Shipping F12 steel rod bender 4-14 cnc automatic 2d reinforced stirrup bending machine form wire rebar stirrup bending machine
Packing:export wooden case
Shipping:by sea or by land,within 7-10 days after receiving order.
Company Profile Xingtai Judu Technology Co., Ltd. is located in Xingwan Town,Renxian County,Xingtai City,Hebei Province,which has a long history in the machinery manufacturing industry. Founded in 1978, the company is an enterprise specializing in the production and sales of wire processing machine.More than 30 years of development,the company has always been a credit event,quality of tiansheng,JUDU business philosophy,service,innovation and constantly striving to adhere to the independent intellectual property rights as the core of the road of scientific and technological innovation,the current rebar bending machine,for my company's main products,products exported to the areas across the country,some products are exported to Asia, Africa and other countries and regions,our integrity innovation spirit of enterprise,relying on the leading research and development capabilities,efficient production,stable quality and good after-sales service to satisfy the needs of customers at home and abroad.The company has now passed the ISO9001:2000 international quality management system certification,"JUDU" trademark is recognized as a famous trademark in Hebei Province,the products even won the national quality service integrity enterprise,Hebei famous brand products and other honorary titles. FAQ 1. Do you have any warranty of CNC rebar stirrup bending machine?
Yes, we have.2 years warranty;
2. How is your after-sale service?
We have a professional technology supporting team for your timely services.You can get the help you need in time by telephone,
webcam,online chat (Google talk,Facebook,Skype,Whatspp,Wechar).Please contact us once the machine has any problem.Best service will be
offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety.Our machines are under strict quality
management to ensure good quality.Because we fully understand that it will be a great trouble if machine have any problem during
working at oversea.
4. Will you teach how to use the F12 steel rod bender?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service
ensure you whatever problem and whenever you meet, you can solve easily.It is easy to operate by anyone with the instructions.
5. How about the shipment?
The machine will be shipped within 3-15 days after the receipt of your payment.
6. Can visit your factory?
Welcome to our factory.We would like to make invitation letter for you.Hope we can cooperate with you for a long term.
7. Where are you factory? how can we go there?
Our factory in Xingtai city.Hebei province.It is have high-speed train in our city.So it is very convince to come to Xingtai.
1) From Beijing xi to Xingtai Dong. By high-speed train.It is only need 2 hours.
2) You can call us for inquiry. We will choose best ways for you.
