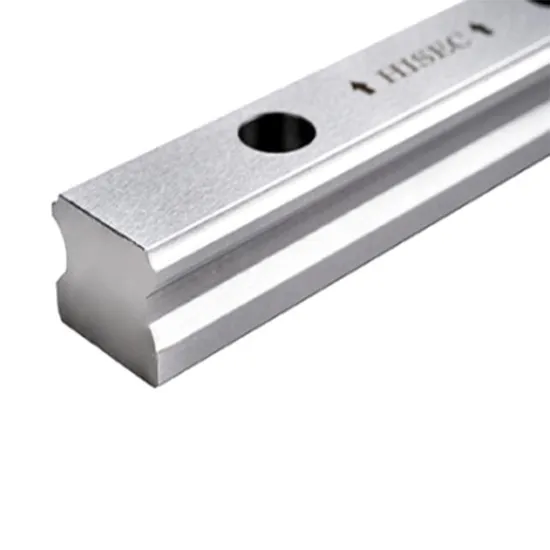

Hisec Good Price Linear Bearing Rail Guide Rail for CNC Machine Tools

Product Description

HISEC guide rail products use advanced material technology, precision technology and production testing equipment to ensure ultra-high stability and durability. After strict quality control, its smoothness, accuracy, bearing capacity and life have reached the industry-leading level, providing a higher cost performance.Precision Grade

Precision Grade	General Grade (N)	High Grade (H)	Precision Grade (P)	Super High Grade ( SP )	Top Grade (UP)
Project
Combined high tolerance(H)	±0.1	±0.04	0-0.04	0-0.02	0-0.01
Combination width tolerance(W)	±0.1	±0.04	0-0.04	0-0.02	0-0.01
Single shaft pairs High tolerance (△H)	0.03	0.02	0.01	0.005	0.003
Single shaft pairs Wide tolerance (△W)	0.03	0.02	0.01	0.005	0.003
The walking accuracy of plane C relative to plane A	△C
The walking accuracy of plane D relative to plane B	△D

Common Rail Design
Walking Parallelism Accuracy

Slide length	Precision Grade
	N	H	P	SP	UP
0~100	12	7	3	2	2
100~200	14	9	4	2	2
200~300	15	10	5	3	2
300·500	17	12	6	3	2
500~700	20	13	7	4	2
700~900	22	15	8	5	3
900~1100	24	16	9	6	3
1100~1500	26	18	11	7	4
1500~1900	28	20	13	8	4
1900~2500	31	22	15	10	5
2500~3100	33	25	18	11	6
3100~3600	36	27	20	14	7
3600~4000	37	28	21	15	7

Exquisite workmanship,smooth guaranteeWe adhere to the strict
requirements of product quality
to provide you with higher quality
products. High speed, low noise
Comprehensive sealing system,
smooth sliding without jam, high
positioning accuracy. Fine workmanship, high steel
High strength steel, precise
cutting, no burrs and unevenness,
customizable length, easy to
install slide. High positioning accuracy
The coefficient of friction is
reduced to 1/50 of the sliding rail,
and the difference between
dynamic and static friction
becomes very small.Fujian Hailiang Precision Manufacturing Co., Ltd. (HISEC) is a wholly foreign-owned enterprise invested and established by Taiwan CHANG DER FIRE PROTECTIONS CORP in 2024 to strengthen its services for the rapidly rising Chinese market , Founded on January 04,2024, the company is located in the Fujian Hailiang Fire Factory area in Shiting Town, Xiangcheng District, Zhangzhou, Fujian with a construction area of 79,925 square meters and a total investment of 300 million yuan. The main business is the production and sales of linear guide rails and linear transmission related parts. Taiwan CHANG DER FIRE PROTECTIONS CORP was founded in 1979. The company has been engaged in the production of linear guide rails since 2018, as a manufacturer in Taiwan with independent research and development of linear guide rails and actually introduced into mass production. At present, the product marketing network of the production covers the European Union countries, North America, China, Japan, South Korea, Brazil, the Middle East and the Gulf and other markets. We always adhere to the concept of innovation, quality and service-oriented, paying attention to the trend and development of the industry, actively expanding new application fields, and constantlypromote the development and application of line rail technology, so as to provide efficient, stable and high-quality line rail solutions for the development of the global manufacturing industry. Choosing HISEC linear rail is to choose a commitment to industrial quality and a confidence in future development.

---
