US$45,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Machinery & Hardware, Food & Beverage, Medical, Toys, Commodity
Driven Type
Servo and Arm Bending
Computerized
Computerized
After-sales Service
All Time
Suitable Sheet
PVC, PS, Pet
Transport Package
Wooden Packaging
Specification
height: 80mm
Production Capacity
5sets/Month
Product Description

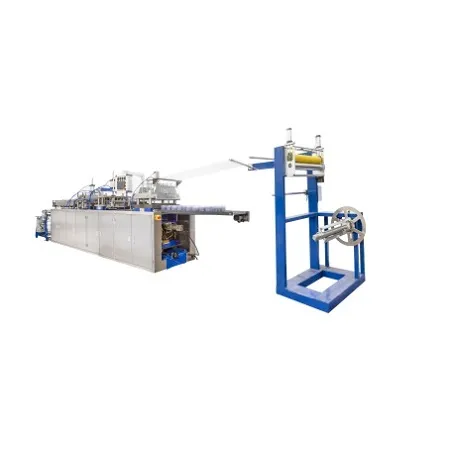

Automatic Plastic/Paper Cup Lid Fruits/Medicine Tray Forming Machine
MODEL-450/600 Hardware thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PLA plastic products.
technical parameter:
| Model | MODEL-450/600 Hardware |
| Suitable Sheet | PVC, PS, PET |
| Largest Forming Area | 600mm*450mm |
| Maximum Width | 620mm |
| Maximum Depth | 80mm |
| Power | 28Kw |
| Air Pressure | 0.6-0.8Mpa |
| Production rate | 15-30die/min |
| Depth of Sheet Material | PS/PVC: 0.10mm-0.80mm PET: 0.10mm-0.60mm |
| Weight | 4300Kgs |
| Overall Dimension | 4300mm*1250mm*1900mm(L*W*H) |
Samples:
Our service:
1. warranty: 12months. if the spare part is broken in the warranty period, we will send a free replacement part as free.
2. Installation and training: we can send engineer to install and run the machine, but all the charges should be paid by buyer, as visa, two-way tickets, meals and accommodation, etc.
3. Quotation: valid for 30days.
Machine Feature:
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
According to user requirements design mold;
Shipment:
