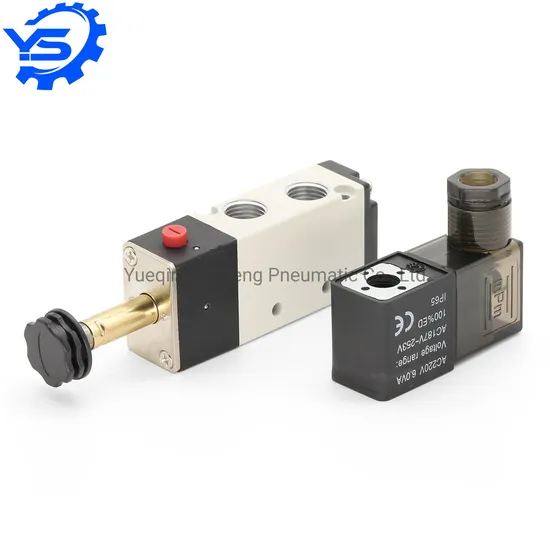

Pneumatic Control Element 4V210-08 Two-Position Five-Way Valve 5/2 Port Internal Polit Type Pneumatic Solenoid Valve with Single Coil

Product Description

Product Description

	Model	Thread	Port Area	CV Value	Coil Power	Type	Working Pressure	Voltage
	4V110-06	G1/8	12mm sq	0.56	3VA	5/2 Port Internal Polit Type Singlr Coil	0.15~0.8Mpa	DC12V DC24V DC36V AC36V AC110V AC220V AC380V
	4V210-08	G1/4	16mm sq	0.78	3VA
	4V310-10	G3/8	30mm sq	1.40	3VA
	4V410-15	G1/2	50mm sq	2.80	3VA
	4V120-06	G1/8	10mm sq	0.56	3VA	5/2 Port Internal Polit Type Double Coil
	4V220-08	Rc1/4	14mm sq	0.78	3VA
	4V320-10	G3/8	25mm sq	1.40	3VA
	4V420-15	G1/2	50mm sq	2.80	3VA
	4V130-06C	G1/8	7mm sq	0.56	3VA	5/3 Port Internal Polit Type Double Coil Closed Type
	4V230-08C	G1/4	12mm sq	0.78	3VA
	4V330-10	G3/8	18mm sq	1.40	3VA
	4V310-15	G1/2	30mm sq	2.80	3VA

Detailed Photos

Only 25 Psi Can Start the Pneumatic Valve, Which is Easy to Operate, Easy to Install and Easy to Remove. The Manual Button Tests the Status of the Product when It is Powered Up.two Air Intake Holes Cannot Be Used at the Same Time. when Using, You Need to Block One Side with a Plug. The Valve Body is Made of High Precision Aluminum with High Hardness and Long Service Life. The Inner Hole is Machined by a Special Process, with Low Frictional Resistance, Low Starting Air Pressure. Air Solenoid Valve Has Single Control Solenoid Valve Have Internal Pilot Structure, Sliding Column Structure, Good Sealing and Responsive. Each Thread is Finely Processed, No Burrs, Smooth and Easy to Install. The Valve Body Contains a High Concentricity Seal Ring, Which is Not Easy to Leak, and the Rubber Pad with Lubricating Oil Reduces Friction. Manual Operation, Smooth Operation, Accurate and Reliable Positioning. High Precision Stem Fit Degree is High Air Tightness. Hot Sale Product

Application
Company Profile
Yueqing Yisheng Pneumatic Co.,Ltd devoting ourselves to pneumatic components.we integrates developing manufacturing,sales,service and technical support together for long terms .
Our sales network have covered exceed 100 countries and areas. German,France ,Italy,United Kingdom, United States, Russia, Turkey,Dubai,Saudi Arabia, Brazil, Chile ,Middle East countries and Southeast Asia .This serve us win the high reputation and impression in the products we support pneumatic fitting ,plastic tube ,air source,cylinder ,solenoid valve,and All kinds of products .
Your attention and propose is the important motivity for our enterprise ,we are keenly expect we could make effort together with you .
We sincerely hope to cooperate with customers all over the world on the basis of mutual benefit.
We honestly welcome to visit, thank you .
Payment & Delivery

FAQ
Q: Can I get some samples?
A: Yes,Sample order is available for quality check and market test.But you have to pay the express cost.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for bulk order.
Q: What's your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Western Union,Paypal and Cash.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Do you have the products in stock?
A: Depends on your request.We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q: Can I mix different power in one container?
A: Yes,Different models can be mixed up in one container,even one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.
Q: I would like to know if you have a partner for export?
A: Yes,YISHENG have the right to export and can sell product all over the world.

---
