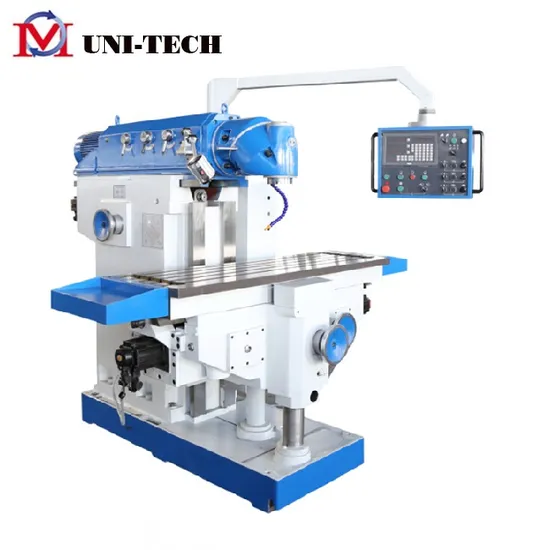

X5750 Heavy Duty RAM Swivel Head Universal Milling Machine for Metal Cut

Product Description

FEATURE of X5750 Heavy Duty Ram Swivel Head Universal Milling Machine for Metal Cut
Extra large work table and wide travel ranges on all axes Rigid, torsion-proof construction with additional guide columns for constant precision when machining heavy workpieces Universal swivel head - cutter can be moved to any spatial angle Fine-stepped spindle gears for powerful machining Dynamic, infinitely variable feed and rapid feed driven by powerful, separate servo motors on every axes Preloaded ball screws with zero backlash for easy and precise feeds Precise dovetail guides on X axis, wide square guides on Z axis Swivelling control panel with integrated position indicator simplifies operation Central lubrication and LED work lamp are standard equipment
SPECIFICATION of X5750 Heavy Duty Ram Swivel Head Universal Milling Machine for Metal Cut

Specifications	Unit	X5746	X5750
Table size	Mm	460*1235	500*1600
T-slots(NO./width/pitch)	Mm	5*18*80
Table travel (X/Y/Z)	Mm	900*650*450	1200*700*500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO40	ISO50
Spindle speed range	R.P.M	(27) 30-2050
Table feed(X/Y/Z)	Mm/min	10-1000/10-1000/6-640	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	Mm	32-482	25-525
Distance from spindle center line to column	Mm	47-697	55-755
Main motor power	Kw	5.5	7.5
Feed motor	Kw	AC servo motor
		X/Y:15NM;Z:18NM
Max load	Kg	800	1800
Overall size	Mm	1835*2362*2090	2475*2260*2180
Net weight	Kg	3200	4000

Standard with: Drill chuck Mill chuck Reduction sleeve Wrench, Inner-hexagonal spanner Camlock Wedge shifter Spindle arbor Horizontal milling bilt Operatin manual.
Optional accessories: 3-Axis SINO DRO Universal dividing head Rotary table TSL250 Machine vice WORKSHOP:
CERTIFICATE:
International Exhibition:
PACKAGE:
FAQ:
CONTACT:
TENGZHOU UNI-TECH CO. LTD
