US$15,000.00-70,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
55\110, 65\132, 80|156
Computerized
Computerized
Certification
ISO9001:2008, CE, TUV
Delivery Conditions
Fob CIF CIP
Processing Period
40 Days
After-Sales Service
Send Engineers Install and Test Machine
Technical Support
Permanent
Transport Package
Stretch Film and Wooden Pallet, Wooden Packing
Specification
According to customer requirements
Trademark
Sincere Machinery
Production Capacity
50 Sets\Year
Product Description
PVC WPC Hot Face Granulating Line.
PVC Plastic Recycling Machine

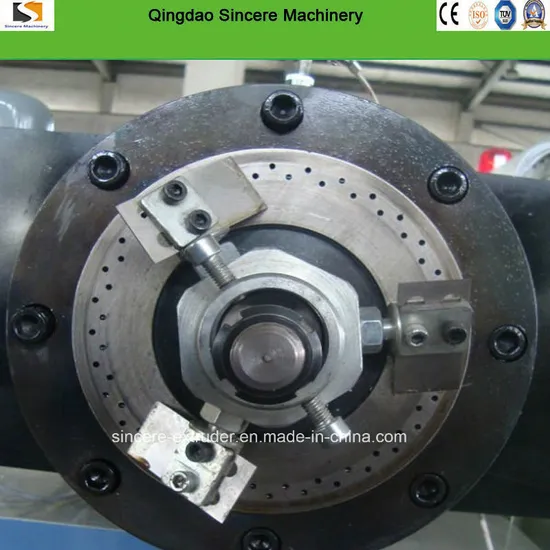

This pelletizing machine is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC, WPVC, WPE raw materials with wood powder or other additives. The pellets produced by this machine is evenly, solid and elegance. The pelletizing downstream equipment is the die face cutter, air transferring unit, vibration separating and cooling unit. This pelletizing downstream equipment has the features of high automation and high production efficiency.
Main Technical Specification
|
| Model | Screw Specificaion | Pellets size | Power of main motor | Output(kg/h) |
| XSCP55 | 55/110 | 3-4mm | 22kw | 100-120 |
| XSCP65 | 65/132 | 3-4mm | 37kw | 220-260 |
| XSCP80 | 80/156 | 3-4mm | 55kw | 320-450 |
| XSCP92 | 92/188 | 3-4mm | 110kw | 650-800 |
