CE Approved Double Column C5240*H/40 Made in China Traditional Vertical Turning Lathe Machine

Product Description

Product Description
CE Approved Double Column C5240*H/40 Made in China Traditional Vertical turning Lathe Machine
Features: CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy workpieces with large radial size and relatively small axial size and complex shape. Such as a cylindrical surface, an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels and sleeve workpieces, and can also be processed by means of additional devices such as running threads, spherical surface turning, imitating machining, grinding and the like; compared with a horizontal lathe, the workpieces are clamped in the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the workpiece are more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain its working accuracy for a long time. 1.Conventional single column vertical lathe
Product main technical Specifications:
This series of single column vertical lathe has a vertical tool rest and a side tool rest. It is suitable for machining various kinds of ferrous metals, non-ferrous metals and some non-metallic materials with high-speed steel tools and cemented carbide tools. It can turn inner cylindrical surface, outer cylindrical surface, end face, inner cone surface, outer cone surface and groove.

No.	Name	Unit	C5225	C5231	CQ5240	C5240	C5250	C5263
1	Max.turning diameter	mm	2500	3150	4000	4000	5000	6300
2	Table diameter	mm	2250	2830	2830	3200	4500	6000
3	Max.height of workpiece	mm	1600	2000	2000	2500	3150	3150
4	Max.weight of workpiece	T	10	10	10	32	50	50
5	Horizontal travel of tool post	mm	1400	1735	2150	2160	50~2765	3415
6	Vertical travel of tool post	mm	1250	1250	1250	1250	1600	1600
7	Power of main motor	mm	55	55	55	55	75	90
8	Overall size of machine	KW	5180*4560*4680	5520*6960*5725	6780*4850*5080	6870*5200*5850	12960×6781×8865	14260*6850*8865
9	Machine weight	T	33	38	39	48	100	110

Detailed Photos

	Worktable: Workbench respectively for the overall casting structure,the use of high strength and low stress cast iron,grade HT250 aging treatment has sufficient rigidity, strength and stability.
Beam of high-strength cast iron low stress, aging treatment, steady structure deformation, through its rail IF quenching, has sufficient rigidity and strength to ensure the accuracy of machine tools. Above rail unloading device with weight loss, reducing the resistance movement of the tool holder, beams and columns rail contact surface glued PTFE rail wear soft belt with a small friction coefficient, greatly extending the life of the machine. Front beam is placed upright so that beams in the column do vertical movement.
	Electrical cabinet:All electrical components are integrated in the power distribution cabinet. The electrical components are well-known in China. At the same time, our company also provides HEIDENHAIN, Siemens, and Schneide as optional components.
Hydraulic stations:It includes a table static pressure system, a main drive system, a beam clamping system, and a vertical turret tamping hydraulic balance system. The hydraulic device has a pressure protection function, and it will close automatically if the pressure is not used properly

Sample Products

Company Profile

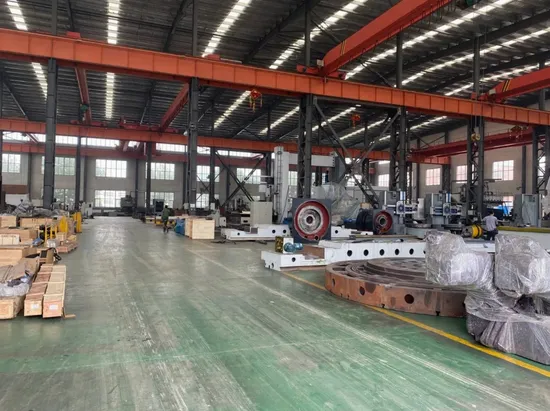

Zaozhuang Panda CNC Machinery Co., Ltd. is an enterprise specializing in the production of various types of rotary joints and metal processing machinery. The plant covers an area of 100,000 square meters, with a construction area of 80,000 square meters. For decades, we have been providing all kinds of CNC milling machines, CNC machining centers, CNC lathes, lathes, milling machines, drilling machines, sawing machines, grinding machines, as well as metal processing machinery products such as tools and mechanical accessories for all walks of life in the national economy. Our machines are very popular overseas and exported to more than 100 countries and regions, and our machines are loved and welcomed by customers,Have obtained CE, ISO, TUV, SGS, EAC and other certificates. We have more than 20 years of experience in supplying these machines to more than 100 countries, and our machines are loved and welcomed by customers at home and abroad.
Why choose us:
Factory with ISO,SGS ,CE, EAC, TUV, BV, ERP, SONCAP certificate.
More than 80000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience.
24 hours online service at any time.
Support ODM OEM.
Trade with customers in more than 150 countries around the word .
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
Warranty time is 2 years

Certifications


Cooperated Brands


FAQ


1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us at any time.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
100% Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5: What's the MOQ?6.. What levell of series fo you provide?--->Your inquiry will be replied within 24 hours.
7. Technology support by providing operation?training videos?
---->Professional after-sales service team. We can Provide Technical support online service and Machine operation Video. We can provide on-site training and commissioning Video. We can Provide Spare parts replacement and repair service.
Give reasonable offers with the best quality.
8. What is our advantages?----> Competitive price: We can meet your budget and best-selling business very well. OEM Accepted: We can produce customized design. Good Service: We treat clients as friends and provide problem solving anytime you need. Good Quality: We have strict quality control system. Good reputation in the market. Fast & Delivery: We have big discount from forwarder (Long-term Contract).
9. Can you customize the machine for the customer?---->Yes. We can, if you need customized services, please contact us
10.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
11.Agents Wanted:---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
