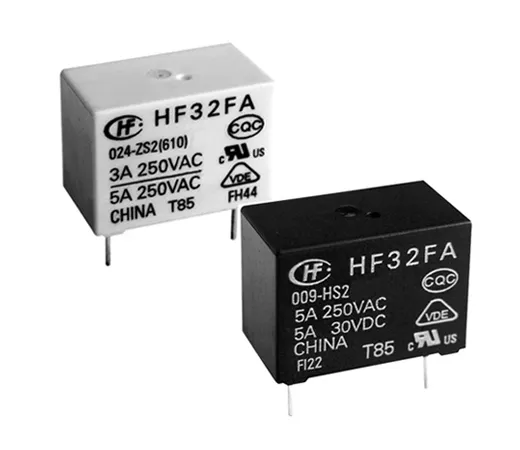

Subminiature Medium Power Relay Relay Output

US$3.00-5.00 100 Pieces (MOQ)

Basic Info.

Model NO.
HF32F
Electricity Type
Dc
Load
High Power Relay
Size
Subminiature
Type
Electric Parameter Relay
Color
Write or Black
Bom
Support
Transport Package
Carton
Specification
18.4*10.2*15.3
Origin
China
HS Code
8536690000
Production Capacity
1000000PCS/Year

Product Description

Type HF32F
Coil voltage form DC
Coil voltage 48, 12, 9, 3, 6, 5, 24, 18
Contact arrangement 1 Form C, 1 Form A
Contact version Single contact
Terminal type PCB
Mounting PCB-THT
Construction Plastic sealed, Flux proofed
Coil power Sensitive, Standard
Sort Single side stable
Contact capacity AgSnO2, AgCdO, AgNi
Insulation standard Class B, Class F
Contact plating Without plating
Packing method Tube packing or Carton packing
Rated voltage(V) 250V.a.c
Coil power
Dielectric strength (between coil & contacts) (VAC 1min) 2500VAC 1min
Operate time(ms) ≤8
Release time(ms) ≤5
Coil resistance(Ω)
Creepage Distance(mm) 3.2
Electrical Distance(mm) 3.1
Insulation resistance(MΩ) 1000
Max. switching Current(AC) 10
Max. switching Current(DC) 5
Max. switching voltage(VAC) 250VAC
Max. switching voltage(VDC) 30VDC
Ambient temperature (max)(ºC) -40
Ambient temperature (min)(ºC) 70
Mechanical endurance min 5000000
Electrial eddurance min 100000
IEC60335-1 YES
Product Description Pusher Type Electromagnetic Relay
Application appliances
Weight(g) Aporox 6
Volume(mm³) 18.4×10.2×15.5
Product approval VDE,UL,CQC
File No. VDE 40012204,UL E134517,CQC12002076528
1 Form A and 1 Form C configurations
Subminiature, standard PCB layout
Plastic sealed and flux proofed types available
UL insulation system: Class F
Product in accordance to IEC 60335-1 available
Type:HF32F
Coil voltage form:DC
Coil voltage:48, 12, 9, 3, 6, 5, 24, 18
Contact arrangement:1 Form C, 1 Form A
Contact version:Single contact
Terminal type:PCB
Our service; 1) All products are 100% electrically tested before shipment, ensuring optimum performance. 2) Samples are always available.(Your drawings or specification requirements are always welcome.) 3) Your any inquiry or question will be responded within 24 hours. 4) Good after-sales service 5) Short lead-time Each good performance can not be separated from these rigorous test.
