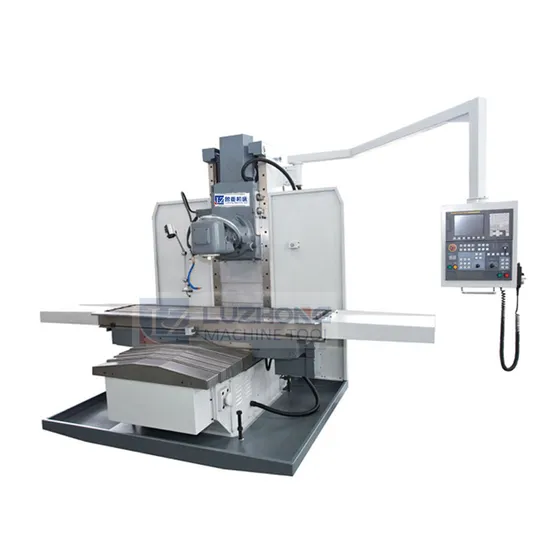

High precision XKW715 Universal Bed Type Milling Machine

Product Description

High precision XKW715 Universal Bed Type Milling Machine
Product Description
The main performance characteristics:
1, a base, a machine body, a working table, a sliding seat and other major components are made of high strength materials cast and become, and the artificial aging treatment, ensure the stability of the machine tool used for a long time.
2, the overall structure of the bed type structure, milling head for high power mechanical variable speed high precision milling head, milling head at any angle rotation; feed of spindle sleeve has function of automatic, manual, manual fine-tuning; spindle rigidity, speed adjusting is convenient and flexible.
3, the spindle box can be manual, motor up-down complete mobile feed and fast moving, convenient and quick operation.
4, bed longitudinal, transverse manual feed, mobile feed and maneuver fast forward three, different feed speed, can meet the requirements of different processing; fast feed can make the work piece quickly arrived at the processing position, shorten the processing time.
5, table x to travel up to 1500mm, and expand the scope of the machine, y, and Z to guide for the wide rectangular guide rail and X, y, Z three direction guide rail vice via ultra audio frequency induction hardening, precision grinding and scraping treatment, with forced lubrication, reduce low velocity crawling, improve the accuracy, prolong the service life of the machine.
6, a lubricating device for vertical, horizontal and vertical to the screw and guide rail are forced lubrication, reduce the tool wear, which guarantees the machine to the efficient functioning of; at the same time, cooling system by adjusting the nozzle change the size of the coolant flow, meet the needs of different processing,
7 and machine operating system by arm hanging in the top right corner of the machine tool, accord with human body engineering principle, convenient operation; operation panel using the image symbol design, simple and intuitive.
Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment. Product Parameters
Product main technical parameters:

Specifications	Units	XKW715
Table size	mm	2100x500
Table stroke(X.Y)	mm	1500x550
T-type slot numbers / width /space	mm	4-20-100
Max. load working table	kg	2000
Distance from spindle axis to column guide way	mm	610
Distance from spindle nose to table surface	mm	0-650
Distance from spindle axis to table surface	m/min	8-660
Feed speed(X.Y)	mm/min	2.5-3000
Feed speed(Z)	mm/min	2.5-2500
Rapid feed speed(X.Y.Z)	mm/min	6000/6000/3000
Spindle taper		ISO50(7:24)
Spindle speed range	rpm	35-1345(12 steps)
Spindle motor power	KW	7.5
Feed motor power	KW	2.5
Coolant motor power	W	550
Positioning accuracy	mm	±0.04
Repeat positioning accuracy	mm	0.02
Overall dimensions(Lx W x H)	mm	3650x2380x2750
Machine weight	Kg	7300

Detailed Photos
Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
