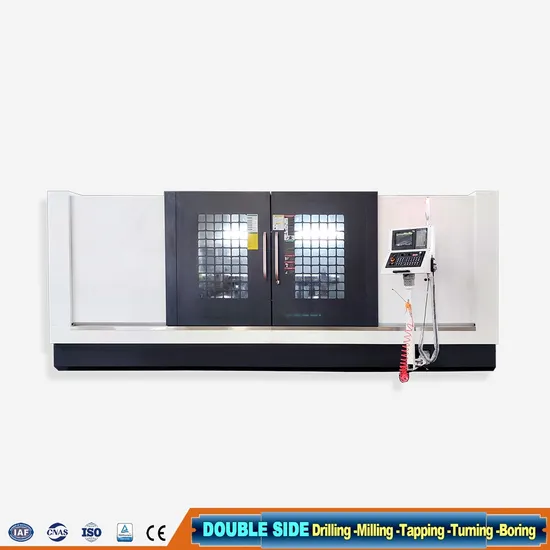

3000mm Double Sided CNC Precision Horizontal Machining Center with Dual Atc

US$120,000.00-180,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CZZK
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Double Sided CNC Machining Center
Structure
Horizontal CNC Machining Center with Atc
Core Advantage
Double Side Spindle Drilling Milling with Atc
Function
Double Ends Hole Drilling,Tapping,Face Milling
Usage
Railway Axle Rod End Processing
Other Applications
Truck Axle,Rear Axle, Shaft, Piston Rod, Motor Sha
CNC Type
Dual Channel Absolute Value Bus
Automation
Support
Model Extension
1000mm,2000mm,3000mm,4000mm
Processing Details
Drilling/Milling/Tapping/Turning Metal Shaft
Keywords
CNC Milling Machine
Machine Tool Design
Double Spindle CNC Milling Machine
Machine Bed
Horizontal Milling Machine
Feature Tags 1
China High-End Manufacturer
Feature Tags 2
Top CNC Factory From China
Transport Package
Discussed
Specification
CZZK-3000
Trademark
YOTMT
Origin
China
HS Code
8457101000
Production Capacity
50

Product Description

3000mm Double Sided CNC Precision Horizontal Machining Center with Dual ATC: Revolutionize your production line with our state-of-the-art CNC machining center, featuring unparalleled precision and advanced automation capabilities to enhance efficiency. | ARGUMENT

Project Unit Parameter
usage
workpiece diameter mm 100~300
workpiece length mm 1000~3000
process details heavy milling,edge hole drilling,tapping,boring,turning
custom details diameter,length of parts
function completer process with railway axle ends
details
axis each side 2~4
tool magazine P 16~32
cnc controller double channel
KND.GSK.FANUC.SIEMENS.....OPTIONAL
OVERVIEW
Overall machine size (approx. mm 7400×2100×2600
Overall machine weight (approx.) kg 15000
Total power (approx.) kw 60


| DETAIL PRESENTATION

STRUCTURAL DESIGN

Featuring an innovative double-ended spindle design, our machine integrates a horizontal spindle box layout with three dynamic moving axes on each side, enabling the simultaneous execution of milling, drilling, and tapping on two sections of the workpiece.

SPINDLE DESIGN

Experience precision with our dual-end face processing,
as each side is equipped with a sophisticated automatic tool change magazine, accommodating various drilling and tapping needs with ease and flexibility.


HARDWARE DESIGN

The machine boasts an integrated casting base and spindle box, complemented by an enclosed double-layer protective design,
featuring first-class domestic quality accessories to ensure durability and reliability.
Embrace the excellence of global brand accessories with customizable options available.



USE DESIGN


Utilize the convenient foot switch and manual trimmer, along with robust BT50 spindles,
incorporating a dual-channel CNC system for enhanced precision,
coupled with an adjustable self-centering hydraulic clamp,


high-pressure coolant for optimal performance,
ensuring effective chip flushing and cooling,

customizable 3-axis and 4-axis configurations for each side,
with an automatic adaptation for more efficient symmetric groove machining tools.
Features double spindle/double automatic tool magazine for unmatched productivity.








| CERTIFICATES & ACTIVITIES


Recognized as China's leading manufacturer of CNC machine tools for double-sided processing,
backed by hundreds of technical patents, specializing in drilling, milling, and turning shaft parts with exceptional precision.
Our high-quality positioning machine tool products are highly esteemed by users in developed countries worldwide.




|ABOUT FACTORY
Shandong Youtai Machine Tool Manufacturing Co., Ltd. is proudly situated in Tengzhou City, a hub famously known as the "Capital of Small and Medium-sized CNC Machine Tools in China." This historically rich city is home to renowned figures such as philosopher Mozi and craftsman Lu Ban. Nestled near the cultural site of Confucius' three holes, our location is a beacon of cultural heritage and a modern sanctuary for metalworking excellence, significantly contributing to the global machinery manufacturing industry.
Since our inception in 2011, Shandong Youtai Machine Tool has been at the forefront of innovation in efficient machining equipment for shaft parts. As a technology-driven enterprise, we focus on crafting high-end CNC machine tools and specialized machines for diverse industries. Spanning over 50 acres, our facilities include over 30,000 square meters of cutting-edge workshops and offices. We boast sophisticated precision machines like gantry machining centers and CNC guide rail grinders, paired with high-precision measuring equipment, ensuring superior product quality.
Our team comprises over 100 dedicated professionals, including more than 30 skilled technical experts and an equal number of engineering specialists. We engage in profound collaborations with over ten custom part enterprises. Through our independent R&D efforts, we have developed an array of machines, including milling end face drilling center hole tools, double-side lathes, and twin-head horizontal machining centers designed for cylinder barrels. Our portfolio spans more than twenty series and over fifty distinct products, successfully exported to developed nations across Europe and Asia, solidifying our reputation as a prestigious domestic brand in the industry.
