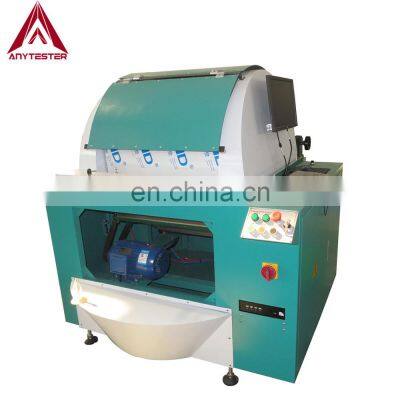

AT241B Small Sample Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241B Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
Specification
Model
| AT241B
|
Warping width
| 0~500mm
|
Warping speed
| 0~500m/min
|
Warping length
| 2.4m or 3m
|
Applicable yarn density
| 5~500tex
|
Number of bobbins
| 1pcs (manually changeable)
|
Yarn arrangement
| Servo motor control with accuracy of 0.01mm reachable
|
Applicable warp beam diameter
| ¢60mm
|
Applicable warp beam length
| 300~500mm
|
Air pressure required
| 0.4~0.8Mpa
|
Air consumption
| Max. 200L/h
|
Power supply
| AC380V 50Hz, three-phase
|
Dimensions
| 1700×1000×1300mm(L×W×H)
|
Weight
| Approx.850kg
|
Details & Features
★ PC control and software for arranging the laying of yarn;
★ Special design for sample weaving in lab or research and development institute; ★ Adjustable working space of unwinding device, suitable for various warping beams whose length is within 300~500mm;
★ Yarn breaking detector;★ Foot pedal for unwinding;
★ With inching button and emergency stop for the safety of operator;
