ISY SDC TCM ID Mounted Pipe Beveling Machine

Product Description

ID Mounted Pipe Beveling Machine
Overview

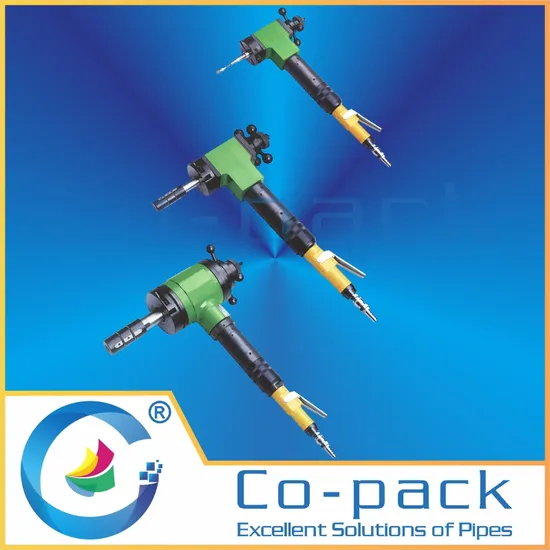

The ID mounted Pipe Beveling Machine can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "T" shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines of petroleum, chemical, natural gas, power supply construction, boiler and nuclear power.
Features
Cold cutting, without influence the material of the pipe
ID mounted, adopt T structure
Varity of beveling shape: U, Single-V, double-V, J beveling
It can also be used for repairing inner wall and deep hole processing.
Working range: 12.5-820mm
Driven motor: Pneumatic and Electric
Customized machine is acceptable
Capability
Pipe end beveling
Inside beveling
Pipe facing
Compound beveling
Beveling Shape
The key words of this product: Pipe beveling machine Tube beveling machine
Model and Specification ("T" Shape Structure)

Model		Working Range ID mm	Thickness mm	Power kw	Rotating Speed rpm
Electric	Pneumatic
ISY-28TX	TCM-28TX	Ф12.5-28	≤3	0.71	53
ISY-80T	TCM-80T	Ф28-76	≤15	0.90	53
ISY-90T	TCM-90T	Ф36-90	≤15	1.43	50
ISY-28TN-1	TCM-28TN-1	Ф12.5-15	≤3	1.43	70
ISY-28TN-2	TCM-28TN-2	Ф15-20	≤5	1.43	70
ISY-28TN-3	TCM-28TN-3	Ф20-28	≤6	1.43	70
ISY-80TN	TCM-80TN	Ф26-79	≤15	1.43	70
SDC-120T	TCM-120T	Ф45-105	≤20	1.43	34
SDC-150T	TCM-150T	Ф65-159	≤20	1.43	34
SDC-150TN	TCM-150TN	Ф60-170	≤20	1.43	34
SDC-350T	TCM-350T	Ф150-330	≤20	1.43	14

Above parameters just for reference only, not acceptance criteria.
Model and Specification ("Y" Shape Structure)

Model		Working Range ID mm	Thickens mm	Power kw	Rotating Speed rpm
Electric	Pneumatic
ISY-150	TCM-150	Ф60-171	≤15	1.43	30
ISY-250	TCM-250	Ф80-240	≤15	1.43	16
ISY-351	TCM-351	Ф150-330	≤15	1.43	10
ISY-630	TCM-630	Ф300-600	≤15	1.43	8
ISY-850	TCM-850	Ф600-820	≤15	2.0	7

Above parameters just for reference only, not acceptance criteria.
Model and Specification (High Wall Thickness)

Model		Working Range ID mm	Thickness mm	Power kw	Rotating Speed rpm
Electric	Pneumatic
ISY-250-II	TCM-250-II	Ф80-240	≤75	1.4	16
ISY-351-II	TCM-351-II	Ф150-330	≤75	1.4	10
ISY-630-II	TCM-630-II	Ф300-600	≤75	1.4	8
ISY-850-II	TCM-850-II	Ф600-820	≤75	2.0	7

Above parameters just for reference only, not acceptance criteria.

"T" Shape Structure	"Y" Shape Structure
High Wall Thickness

Tooling
Integrated Tool
Can be reused by grinding
Material: M42 or M35
Standard supply
Insert Tool
Insert same, different angle holder
Holder material: HSS
Insert material: Cermet or Carbide optional

---
