Welcome to visit

3-Axis High Chip Removal Horizontal Gun Drilling Machine

US$38,000.00-65,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DHD-1010
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model
DHD-1010
Item
CNC Deep Hole Drilling Machine
Workbench Size
L1200mm X W800mm
Max. Drilling Depth
1000mm
Drill Hole Inner Diameter
Dia.2.5~30mm
Spindle Specifications
Oz25
X-Axis Displacement
1000mm
Y-Axis Displacement
800mm
Z-Axis Displacement
1000mm
Transport Package
Standard Exporting Package
Specification
4200x3500x2600mm
Trademark
TEMY
Origin
China
HS Code
8459210000
Production Capacity
500 Sets/ Year

Product Description

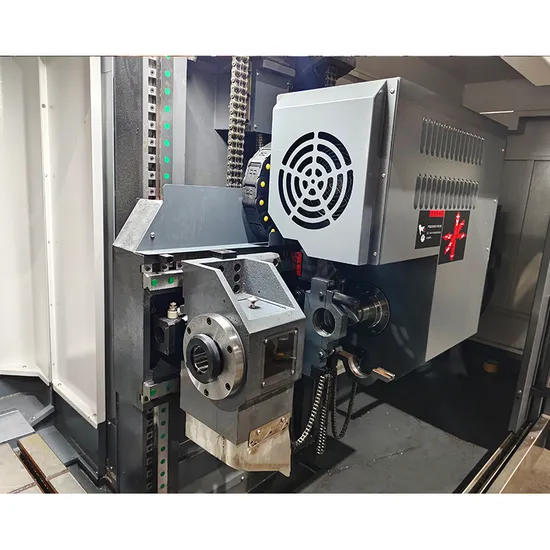

3-Axis Horizontal deep hole drilling machine
Model: DHD1010 It is a horizontal deep hole drilling machine for drilling deep holes. Its structure is horizontal, and the workpiece is placed horizontally during processing. It is mainly used for drilling holes with relatively large depth and diameter ratio on various materials (such as metal materials), such as the inner hole processing of gun barrels, barrels, hydraulic cylinders, etc.
Compared with ordinary drilling machines, it can better ensure accuracy and straightness when processing deep holes, and can effectively solve the problems of chip removal and cooling lubrication, so that the processing process is smoother and more efficient.
ITEM UNIT DHD-1010
Machining capacity
Drill hole inner diameter mm Φ2.5~Φ30
Max. drilling depth mm 1000
Machining stroke
X-axis displacement mm 1000
Y-axis displacement mm 800
Z-axis displacement mm 1000
Workbench
Size (L × W) mm 1200*680
Max. Loading capacity kg 6000
Speed and Main Spindle
Spindle taper hole BT40
Max. spindle speed rpm/min 6000
Feed rate mm/min 1~300
System
Control system SYNTEC(Standard) FANUC/Siemens/Mitsubishi/LNC/GSK(optional)
Power
Spindle motor power KW 7.5 / 11
X-axis servo motor power KW 3.1
Y-axis servo motor power KW 3.9
Z-axis servo motor power KW 3.1
Total power KW 28
/Cooling System
Cooling tank capacity L 800
Coolant pressure range MPa 21
Coolant flow range L/min 6~80
Chip conveyer system
Chip conveyor Magnetic chip conveyor(Standard) / Chain or spring type(optional)
Size & Weigh
Machine weight kg 8000
Machine size (L × W×H) mm 4200×3500×2600
