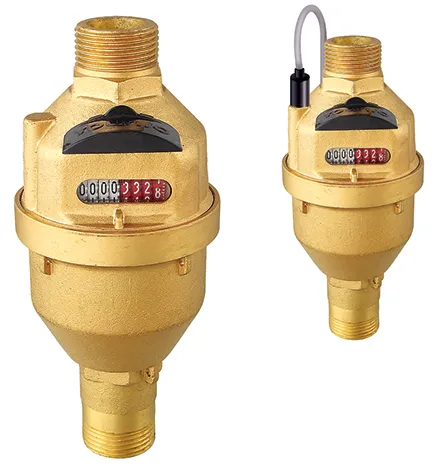

Medidor De Agua Volumetric Water Meter

Product Description

Aplicacion
EI principio de medicion es de desplazamiento positivo por disco nutante colocado en una camara.
EI volumen de agua que pasa a traves del medidor es contabilizado en base al numero de ciclos.
Cada ciclo del disco nutante conduce un volumen fijo de agua. Medicion precisa en amplio rango de caudales.;
Equipado con estrella giratoria sensible a caudales minimos que permite detectar fugas por minimas que sean. Working condition: Water temperature≤30ºC
Water pressure≤1MPa, (PN:1.6MPa/16bar)
ΔP≤0.1MPa (ClassC)
ΔP≤0.063MPa (R160) Accuracy: From minimum flow-rate(Q1) inclusive, to transitional flow -rate(Q2) exclusive:±5%
From transitional flow- rate(Q2) inclusive, to overload flow -rate(Q4) exclusive:±2% Dimension:

Type	Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
LXH-15	15	115	90	/	G3/4"B
LXH-20	20	165	90	/	G1"B
LXH-25	25	200	106	/	G11/4"B
LXH-40	40	227	152	/	G2"B
LXH-15E	15	165	96	115	G3/4"B

Technical Features:

Model Number	LXH-15	LXH-20	LXH-25	LXH-40
Nominal diameter (DN)[mm]:	15	20	25	40
Ratio Q3/Q1:	160	160	160	160
Overload flow rate (Q4) [m³/h]	3.125	5	7.875	20
Permanent flow rate (Q3) [m³/h]	2.5	4	6.3	16
Transitional flow rate (Q2) [m³/h]	0.025	0.04	0.063	0.16
Minimum flow rate (Q1) [m³/h]	0.025	0.025	0.039375	0.1
Accuracy class:	2
Maximum permissible error for the lower flow rate zone (MPEι):	±5%
Maximum permissible error for the upper flow rate zone (MPEμ):	±2% for water having a temperature ≤30ºC
Temperature class:	T30
Water pressure classes:	MAP 16
Pressure-loss classes:	△P63
Indicating range[m3]:	9999
Resolution of the indicating device[m3]:	0.001
Flow profile sensitivity classes:	U0 D0
Orientation limitation:	H/V
Length L[mm]:	115	165	200	227
Connection type-Screw thread size:	G3/4"	G1"B	G11/4"B	G1"B

---
