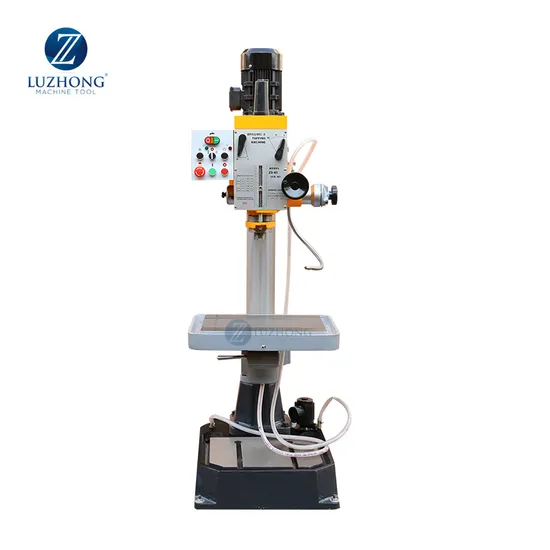

Cheap Metal ZS-40PS Gear Head Drilling and Tapping Machine

Product Description

Cheap Metal ZS-40PS Gear Head Drilling and Tapping Machine Product Description
Product description:
The machine adopt gear driving and the driving movement is strong
The machine has the six series speed variable feature ,which can be widely fit for processing to kinds of common hard and soft material
The head can rotated 360 degree and can tilted +/-45 degree it reliable and easy job can be done
The motor drive by gear ,which overcome the short coming of the belt skid
According to the customer demand the machine can drill ,enlarge,ream and tap the multi-holes by the multi-spindles .
Standard accessories :
Drill chuck Ø16mm
Cutter Ø80mm
Taper sleeve
Arbor
Drift
Wrench
Drawbar
Special accessories:
Milling chuck
Angle vice
Safety guard
Stand Product Parameters
Product main technical specifications:

Model	ZS-40HS/ZS-40PS(with coolant system)
Max. Drilling capacity(mm)	Cast iron 40 steel32
Max.tapping capacity(mm)	Cast iron M32 steel M24
Diameter of column(mm)	115
Spindle travel(mm)	120
Distance spindle axis to generating line (mm)	272.5
Max. Distance spindle nose to table(mm)	745
Max. Distance spindle nose to base(mm)	1200
Spindle taper(mm)	MT4
Spindle speeds range(r/min)	95/170/280/540/960/1600
Spindle speeds series(r/min)	6
Dimension of worktable surface(mm)	540x470
Table travel(mm)	515
Dimension of base(mm)	635x460
Overall height(mm)	1760
Motor(W)	Single phase 750 Three phase 1100
G.W/N.W(kg)	350/310
Packing size(cm)	72x74x186/72x74x191

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
