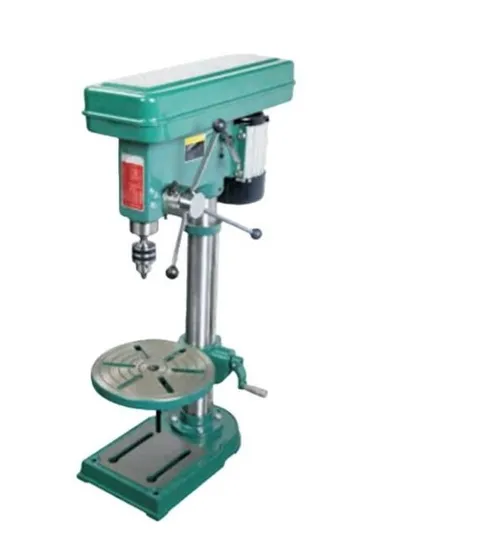

Increasing Production Series of Bench Drills Z515-1A/Z520/Z525

Product Description

Characters:
It is lightweight and flexible, and can be used in industries such as machining and repairing, and is also suitable for repairing daily-use machines in the family.

Model No.	Z516-1A	Z520	Z525
Item No.
Moving
Max. Drilling capacity	16 mm	20 mm	25 mm
Diameter of column	70 mm	70 mm	70 mm
Spindle
Spindle travel	90 mm	90 mm	90 mm
Distance spindle axis to column generating line	193 mm	193 mm	193 mm
Max.Distance spindle nose to table	270 mm	270 mm	270 mm
Max.Distance spindle nose to base	480 mm	480 mm	480 mm
Spindle taper	MT2	MT2	MT3
Spindle speeds	280~3100 r/min	280~3100 r/min	280~3100 r/min
Dimension of worktable surface	250X250 mm	250X250 mm	250X250 mm
Dimension of base	230X280 mm	230X280 mm	230X280 mm
Other
Main motor	380V/370W or 220C/370W	380V/550W or 220C/550W	380V/550W or 220C/550W
Total height	930 mm	930 mm	930 mm
N.W	56 kg	56 kg	56 kg
Packing dimension	755X540X300 mm	755X540X300 mm	755X540X300 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
