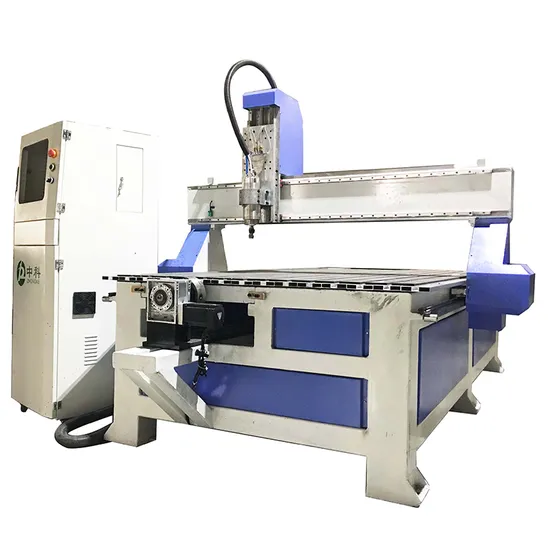

CNC Router Auto Tool Changer Wood Machine 3 Axis CNC Milling Machine Price

Product Description

Product Description
1.Simple operation and installation, when delivery we will provide the videos for training.
2.More steady and strong equipped bed structure with thick steel.
3.Equipped with 3KW/4.5KW/5.5KW or bigger power water cooling spindle, more powerful, enough to cut more thickness materials.
4.The auto oiling system, just pushing the handle then can realize the whole machine oiling, very convenient.
5.Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6.Ncstudio or DSP control system.
7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.
8.Function of re-carving after break point and power off, reducing the materials wasting.
9.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
10.With 200mm diameter rotary attachment, so it can engrave on flat table, also can engrave column object.
Products Show
Specification

Description	Parameter
X,Y,Z Working Area	1300*2500*200mm, with rotary attachment for 3d engraving
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z repositioning Positioning Accuracy	±0.02mm
Lathe Structure	Hard steel sturcture
X Structure	BALLSCREW, Taiwan HIWIN square guide rails
Y Structure	BALLSCREW,Taiwan HIWIN square guide rails
Z Structure	BALLSCREW,Taiwan HIWIN square guide rails
Max.Speed	0-30000mm/min
Max.Working Speed	0-25000mm/min
Spindle Power Motor	Water cooling spindle, can be optional air cooling spindle
Tools magazine	None
Spindle Speed	0-24000RPM
Working Mode	Stepper motor, can be optional Japanese servo motor or Taiwan Delta servo motor
Working Voltage	380V/3 PHASE or 220V
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	Ncstudio control system, also can be optional DSP control system
Collet	ER25(Φ3.175, Φ6,12.7mm CAN OPTIONAL )
X,Y Working Delicacy	<0.01mm
Software	Type3/Artcam software
Running circumstance	Temperature:0°C~45°C Relative humidity:30%~75%
Optional device	Dust collector :USD200 Vacuum system USD 655, servo system(will use Panasonic servo motors and driver board) USD2950
Waranty	One year
Delivery time	1 week after get total payment by T/T transfer
Upgrade	More wider and hard Aluminum table with high quality clamps ,X,Y Axis adopt auto eliminating clearance device, more accuracy ,oil lubrication system standard

Application:

Furniture Decoration Industry	1)A large area flat plate engraving 2)panel furniture carving 3)wood art murals 4)wood cabinet doors carving
Wood Products Processing	1)sewing machine table 2)electrical counter table 3)sports equipments
Musical Instrument Industry	1)instrument 3D surface engraving 2)shape cutting
Artwork	1)photo frame 2)jewelry box
Electronic Industry	1)circuit board 2)insulation mterial 3)LED display screen

Note: optional machine parts
1.The spindle can be water-cooling or air-cooling, single head or multi-head,
and its power can be changed according to the material.(3.0kw, 3.2kw, 4.5kw, 5.5kw etc.)
China brand HQD or Italy HSD spindle.
2. The operation system can be DSP or NC studio system, or MACH3 control system
3. Table surface: Aluminum T-slot table with clamps or vacuum adsorption table with vacuum pump
If you need double use, we also can produce T-slot and vacuum table together
4. The motor can be stepper or servo motor, or hybrid servo motor
5. You can also add dust collector, dust cover, rotary axis, auto oiling lubricating system
6. Other customerized parts. sample photos

cnc router machine manufacturing process:
1. The engineers design the machine according to your needs.
2. The purchasing department carefully select and buy the machine parts.
3. The skilled workers make the machine.
4. The quanlity control department supervise the whole manufacture process.
The machines that we can produce, because we are manufacture, we can offer you different models machine with different function
Then please tell me your requirement is ok

---
