Thermally Stable Diamond Drill Bit Cutters PCD Insert Diamond Tsp Insert for Oilfields Drill Bit

Product Description

Product Description
Thermally Stable Polycrystalline Diamond (TSP)Thermally stable polycrystalline Diamond (TSP) is a diamond polymer made by sintering diamond and bonding agent under high temperature and high pressure. It has extremely high heat resistance and high thermal stability. The shape is triangular, square, rectangular, cylindrical, arc at both ends, and its diversification is suitable for various drilling tools and geological requirements. It is an ideal material for providing wear protection for petroleum / geological drill bits and sucker rod reamers.

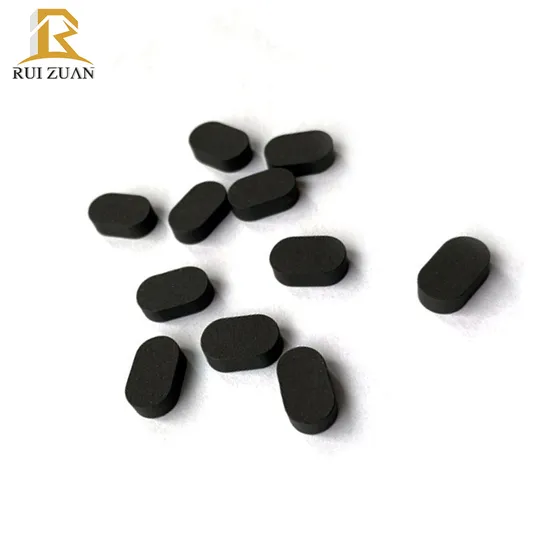

Thermal stable diamond(TSP) cutter specifications Cylinder/button shape Diameter x Height x Angle (mm) 1x1.2x120° 1.5x2x120° 1.5x4x180° 2x4x120° 2x4x180° 3x3x180° 3x8x120° 3x8x180° 4x4x180° 4x10x120° 4x10x180° 5x10x120° 5x10x180° 6x10x120° 6x10x180° 8x3x180° 8x5x180° 10x0.75x180° 10x1x180° 10x2x180° Rectangle/cube shape Length x Widthx Height (mm) 1.5x1.5x1.5 1.5x1.5x4 1.5x1.5x5 1.5x1.5x10 2.5x2.5x2.5 3x3x3 3x3x10 3x5x10 3x6x10 4x4x4 4x6x10 5x5x5 5x5x10 10x10x10 Triangle shape Length1 x Length2 x Length3 x Height (mm) 4x4x4x2.6 5x5x5x3 6x6x6x3.5 6x6x6x4 6x6x6x4.5 Special shape(oval shape) Width x Height x Radius (mm) 3x3x10xR1.5 5x5x10xR3 5x10x20xR7

Our Advantages
TSP Diamond* Has good thermal stability and higher impact strength and better wear resistance.
* The consumption ratio can reach 30,000 ~ 120,000.
* Can meet various complex bottom drilling needs.Product Application
TSP diamond (thermal stable pollycrystalline) is widely applied in the manufacture of petroleum and geological drill bit , ,natural diamond polishing etc.
Customer Reviews
Why Choose Us
International Leading Trade Fair for Grinding Technology
Company Profile
Zhengzhou Ruizuan Diamond Tools Co..Ltd. is committed to providing customers with tools for grinding, cutting, turning, millingdrilling, and reaming. It includes abrasive tools&wheels, diamond/CBN wheels &tools, PCD/PCBNinserts&tools, tungsten carbide inserts &tool, HSS steel tools&cutters.Our tools are applied in many different industries. Our customers find good applications in woodworking, metalworking, Automotive, Stone, Glasses, gemstones, Industrial ceramic, oil & Gas drilling and Constructions industries. In these industriesour products are performing well on long lifetimehigh-efficiency and lessunit-cost.
Packaging & Shipping
PACKAGE:SINGLE BOX PER WHEEL,
10 to 20 WHEELS PER CARTONDELIVERY TIME:3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

---
