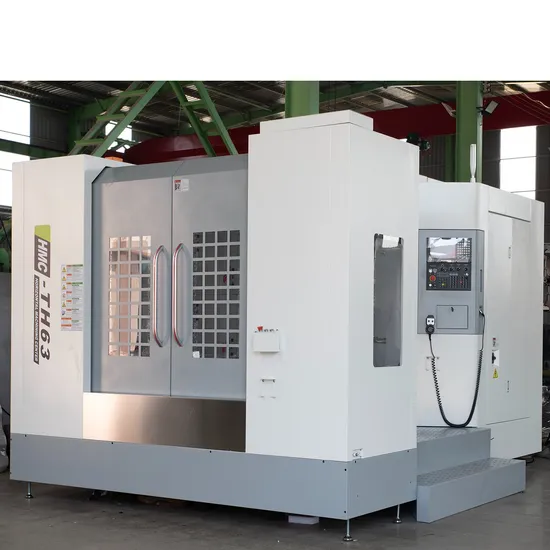

Hmc630 China Manufacturing Horizontal Machining Center with Four Axis Rotating Spindle Extension and Disc Tool Magazine

Product Description

Hmc630 China Manufacturing Horizontal Machining Center with Four Axis Rotating Spindle Extension and Disc Tool Magazine
Product Description
Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Automatic lubrication system Application: Suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .
It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical specifications:

Model	HMC500	HMC630	HMC800	HMC1000
X-axis travel	900mm	1050mm	1300mm	1300mm
Y-axis travel	600mm	900mm	800/1000mm	800/1000mm
Z-axis travel	600mm	1100mm	1300mm	800mm
Table size	500*500mm	630*630mm	800*800mm	1000*1000mm
Work table indexing	1°*360	1°*360	1°*360	1°*360
T slot size	18*5*80mm	22*5*125mm	22*6*125mm	22*6*200mm
Max. Loading of work table	1000kg	1200kg	2500kg	3000kg
Spindle nose to table surface	180-780mm	120-1220mm	150-1450mm	200-1200mm
Spindle taper	BT50	BT50	BT50	BT50
Spindle range	6000rpm	6000rpm	6000rpm	6000rpm
Spindle power	15/18.5KW	15/18.5KW	15/18.5KW	15/18.5KW
Cutting speed	1-10000mm/min	1-10000mm/min	1-10000mm/min	1-10000 mm/min
X/Y/Z fast speed	18/12/18m/min	18/12/18 m/min	18/12/18 m/min	18/12/18m/min
Maching weight	7500kg	10000kg	12500kg	15000Kg
Machine dimention	3200*3800*3000mm	3600*4200*3500mm	4000*4500*3500mm	5200*6300*4000mm

Boring and milling machine structure
High cutting force, high cost performance and rigidity increased by 30%

Detailed Photos

TAIWAN PRECISION SPINDLE
1. Spindle taper is BT50;
2. Spindle speed 6000rpm , can enlarge to 10000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
WORKTABLE
The worktable with good chipremoval, strong rigidity, highconfiguration, no need to stopfor refueling, etc. optionaldouble workbench.

PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
LEAD SCREW AND COUPLING
Taiwan precision lead screw.
1.Lead screw bearing use SKF or NACHI bearing,
2. Coupling R+W directly connected .
Company Profile
FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
