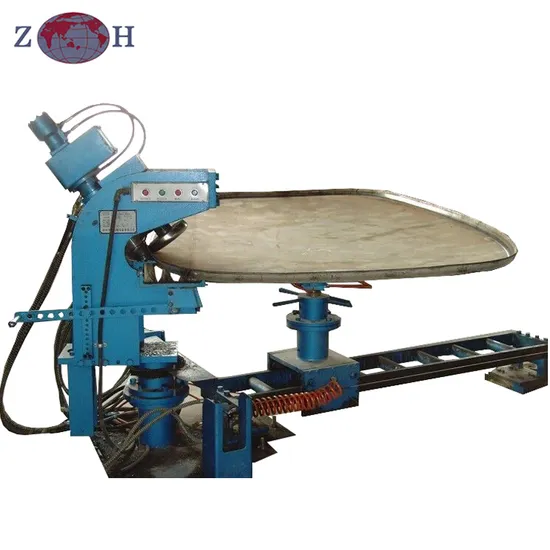

Oval Tank Head Flanging Machine with No Mold

US$19,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

XB-3000

Max. Flange Height

50mm

Min. Flanging Radius

R300mm

Min. Head Diameter

850mm

Max. Material Thickness

Q235 Max. 8mm, Min. 2mm; Stainless Steel Max. 6mm

Flanging Speed

3~8m/Min

Total Power

12kw

Dimension

3800 X 1300 X 1400mm

Brand

Zhenhuan

Transport Package

in Wooden Case

Specification

3800 x 1300 x 1400mm

Trademark

Zhenhuan

Origin

Jiangsu, China

HS Code

84552290

Production Capacity

20 Sets Per Year

Product Description

oval tank head flanging machine adopting spinning principle. This oval tank head flanging machine will make blank work piece from drum machine into flat-bottom end, dish end, and single-direction end, etc.
Main technical data of oval tank head flanging machine

Material thickness	max. 8mm (carbon steel) max. 6mm (stainless steel)
Height of flange	50mm
Flange	R20mm
Min. R of work piece	R300
Total power	12kW
Suitable temperature	-10°C~47.5°C
Relative Humidity	max. 90%
Main machine size	3800 x 1300 x 1400mm (L x W x H)

We can provide you whole line to produce tank trailer including oval tank head flanging machine
Please contact us for more informatio and more service.

Contact person: Lily Bian

Finished oval tank head by oval tank head flanging machine
