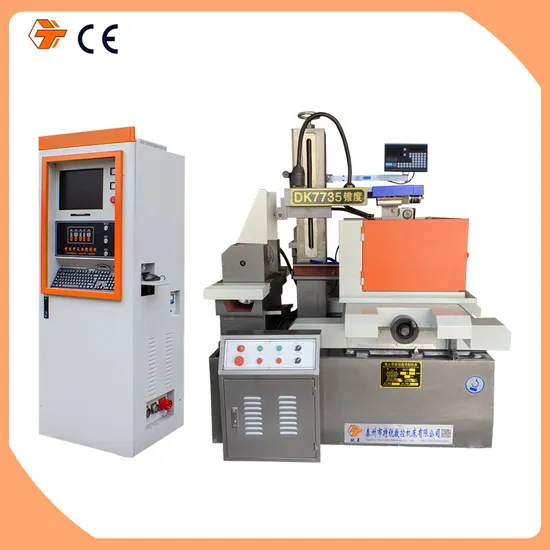

Dk77 Series EDM Wire Cutting Machine CNC Wire Cut Dk7735

Product Description

The company has cooperated with well-known domestic institutions of higher learning, central enterprises, state-owned enterprises, and the world's top 500 enterprises, etc.

Model	Worktable travel(mm)	Worktable size(mm)	Z(mm)	Dimensions(mm)	Weight(kg)
DK7720	200*250	420*270	300	1250*950*1250	800
DK7725	250*320	520*340	500	1450*900*1500	1000
DK7735(32)	350*450	710*460	500	1400*1100*1600	1100
DK7745(40)	450*550	810*570	500	1600*1200*1600	1400
DK7755(50)	550*630	950*650	800	2000*1500*1900	1800
DK7763	630*800	1140*750	800	2100*1700*2050	2400
DK7780	800*1000	1350*980	800	2400*1900*2350	4000
DK77100	1000*1200	1600*1100	1000	2850*2500*2500	5200
DK77120	1200*1400	1800*1350	1000	3050*2750*2500	7500

The intelligent control cabinet independently developed by the company is waterproof and oil-proof, the circuit board is highly integrated, plug and unplug, the failure rate is low, and the maintenance is convenient.
Customers can choose multi-cut control cabinet according to needs.
1. Semi-intelligent control cabinet: Cost-effective, multi-cut function improves the finish to Ra1.2-1.5μm.
2. Fully intelligent control cabinet: Highly intelligent, built-in expert database, improves the finish to Ra0.8-1.2μm.
FAQ:
Q:Are you manufacturer or distributor?
A:We are manufacturer,SGS field certified factory.

Q:How to choose the machine I want?
A:Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a
suitable model;
Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and
better finish)

Q:Our country's voltage is three-phase 220V(or single phase 220V,or other voltage), machine's voltage is three-phase 380V, can you change the voltage?
A:Yes, please tell me the voltage you need,we will customize.

Q:How can I get technical support if I buy your machine?
A:We have detailed instructional videos, even if novices can operate by watching the videos.Please search for Taizhou Terui CNC Machine Co.,Ltd. on YouTube for more videos!

Q:How about after-sales service?
A:Free replacement of damaged parts during the warranty period,replacement at cost price after the warranty period;
If any problems,we will provide you with solutions quickly by shooting videos or other ways.
DK77 series DK7735 cnc edm wire cut machine price

---
