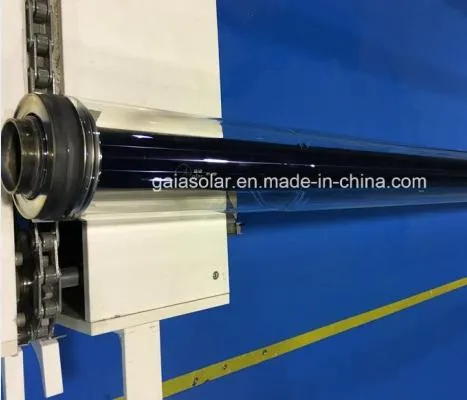

Parabolic Solar Receiver Tube for Csp Both Open Csp Solar Evacuated Tube

Product Description

Product Description 1. Coated Glass-Steel Vaccum Tube used for parabolic trough solar collector
2. Using Kovar make connection
3. 2000mm in length
4. Diameter: 100mm
5. Thickness: 2mm/3mm
6. Temperature can reach: 100~300 Degree centigrade
7. Can produced in large quantity already

Item	Model	Specification
1	Receiver Tube RT-4060	Glass	High Borosilicate Glass
		Steel	SS316
		Outer Diameter and Thickness	φ=125mm/&=3mm
		Inner Diameter and Thickness	φ=70mm / &=2mm
		Length	4060mm
		Working Temperature	400 °C (Oil) or 500 °C (Melton Salt)
2	Receiver Tube RT-2000-125/70	Glass	High Borosilicate Glass
		Steel	SUS304
		Outer Diameter and Thickness	φ=125mm/&=2mm
		Inner Diameter and Thickness	φ=70mm / &=2mm
		Length	2000mm
		Working Temperature	400 °C (Oil) or 500 °C (Melton Salt)
3	Receiver Tube RT-2000-100/40	Glass	High Borosilicate Glass
		Steel	SUS304
		Outer Diameter and Thickness	φ=95mm/&=2mm
		Inner Diameter and Thickness	φ=40mm / &=2mm
		Length	2000mm
		Working Temperature	400 °C (Oil) or 500 °C (Melton Salt)
