New Zealand Syrup Liquid Mixing Tank

Product Description

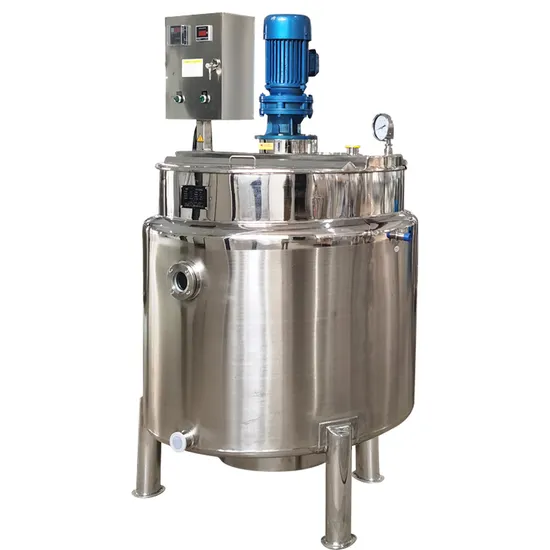

Brazilian Chemical Liquid Coil Electric Heating Stainless Steel Mixing Tank The price is for reference only. The actual price is subject to the communication between the two parties!!! The mixing tank is composed of a mixing tank body, a mixing tank cover, a mixer, a support, a transmission device, a shaft seal device, etc. Heating or cooling devices can also be configured according to process requirements. The materials used for the mixing tank body, mixing tank cover, agitator, shaft seal, etc. can be made of carbon steel or stainless steel according to different process requirements. The mixing tank body and the mixing tank cover can be connected by flange sealing or welding. The mixing tank body and cover can be equipped with process pipe holes for feeding, discharging, observation, temperature measurement, pressure measurement, steam fractionation, safety venting, etc. according to process requirements. The upper part of the mixing tank cover is equipped with a transmission device (motor or reducer), which drives the mixer inside the mixing tank through the transmission shaft. The shaft seal device can adopt various forms such as mechanical seal, packing, labyrinth seal, etc. (determined according to user needs). Due to different production process requirements from users, mixers can be equipped with various types such as slurry, anchor, frame, and spiral.
Classification of liquid mixing tanks:
1. It is divided into upper flat lower cone, upper flat lower oblique, and upper flat elliptical head
2. According to heating methods, it can be divided into electric heating, oil heating, and steam heating
3. Classified by volume: specifications such as 10-5000L, specifically produced according to customer actual needs.

Volume	200L
Pressure	Atmospheric pressure
Stirring power	0.75KW

Model	Work capacity(L)	Stirring power(KW)	Stirring speed(R/MIN)	Working pressure
HZY-300L	300	0.75	36	Atmospheric pressure
HZY-500L	500	0.75	36	Atmospheric pressure
HZY-1000L	1000	1.5	36	Atmospheric pressure
HZY-1500L	1500	1.5	36	Atmospheric pressure
HZY-2000L	2000	2.2	36	Atmospheric pressure

Shenyang Huazhiyi Machinery is a manufacturer that develops and produces various general equipment.
The company's main products are: mixers, packaging machines, filling machines, conveyors, reactors, dehydrators, crushers, etc.Our philosophy is:integrity-based, strength first, and serve customers wholeheartedly.
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.Other payment terms can also be negotiated.
Q. How about your delivery time?
A: Generally, it will take 10 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce molde by your samples or technicaldrawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% tested before delivery.

---
