Ice Cream Processing Line Include Mixer Pasteurizer Homogenizer From China

Product Description

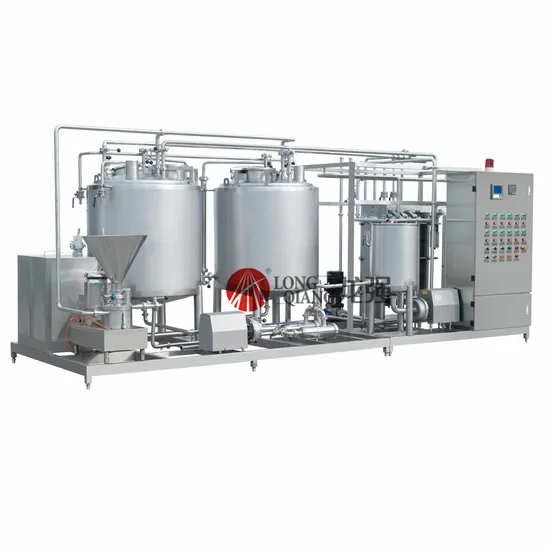

Ice Cream Production Line
The whole ice cream production line consists of the following units:
1. Water Treatment system
2. Mixing and Sugar Melting tank
3. pasteurizer and Homogenizer
4. Aging Unit
5.Freezer and Filling Unit
6. CIP Cleaning System
7. After Treatment Equipment, like conveyor, package or pallet, etc.
8. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
9. Installation materials for the process pipline, utility piplines as well as electrical system are provided.
Specifications of Ice Cream Production Line
1. Features: compact structure, small land area, High heat recovery, energy-saving and simple operation.
2. Capacity: 500-10000L/H
3. Sterilization temperature: 85-95 Degree
4. Temperature of product outlet: 6-10 Degree
5. Control mode: manual, semi-auto, automatic (PLC controller, touch screen display).
6. Our company can design the production lines in accordance to the customers' requirements.
7. Filling types can be decided by the customer then designed accordingly.

Type	Capacity	Energy consumption	Pressure	Flow of cooling water	Flow of ice water	Power	Dimensions	Weight	Pipe diameter
	(T/H)	(kg/h)	(bar)	(t/h)	(t/h)	(Kw)	(L×W×H)	(Kg)	material	Steam	Medium
BR16-BS-BL-1J	1	50	2.5	1	3	12	3.2×1.4×1.8	760	32	DN25	32
BR26-BS-BL-2J	2	100	2.5	2	6	12	3.4×1.6×2.0	930	38	DN25	38
BR26-BS-BL-3J	3	150	2.5	3	9	15	3.8×1.6×2.0	980	38	DN25	38
BR26-BS-BL-4J	4	200	2.5	4	12	15	4.0×1.6×2.0	1030	51	DN25	51
BR26-BS-BL-5J	5	250	2.5	5	15	18	4.0×1.6×2.0	1090	51	DN25	51
BR26-BS-BL-6J	6	300	2.5	6	18	18	4.2×1.6×2.0	1650	63	DN32	63
BR26-BS-BL-8J	8	400	2.5	8	24	20	4.5×1.6×2.0	1770	63	DN40	63
BR26-BS-BL-10J	10	500	2.5	10	30	22	4.8×1.6×2.0	1890	76	DN40	63

---
