Crawler Material Handling Equipment for Ports Terminals and Mills

Product Description

Main Features
The operation process adopts full hydraulic drive to realize stepless speed change of all actions, which overcomes the impact of operation and makes the overall operation process more stable, safe and reliable.
The pilot control is adopted to make the operation lighter, reduce the labor intensity and improve the working efficiency. After changing different grabs, loading and unloading, stacking, reloading and feeding of various bulk cargoes can be realized, thus realizing multi-function of one machine.
The operation process adopts full hydraulic drive to realize stepless speed change of all actions, which overcomes the impact of operation and makes the overall operation process more stable, safe and reliable.
The pilot control is adopted to make the operation lighter, reduce the labor intensity and improve the working efficiency. After changing different grabs, loading and unloading, stacking, reloading and feeding of various bulk cargoes can be realized, thus realizing multi-function of one machineonomic unit. In addition the ergonomic joysticks allow the machine operation to be both pleasant and precise.

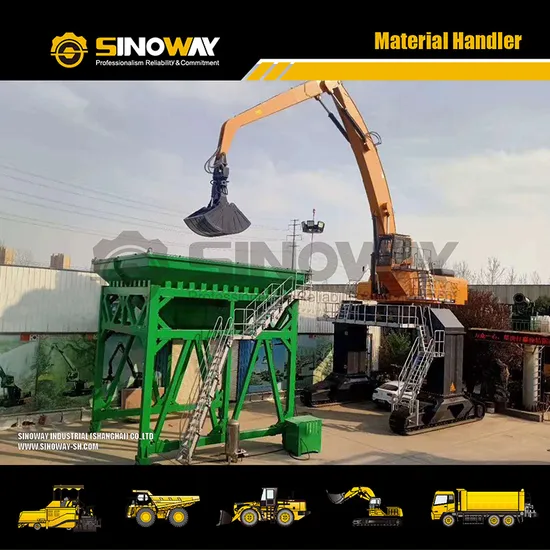

Product Show
Specification

Unloading machine power form	Can provide motors, diesel power, diesel and electric hybrid
Lifting torque	≥ 68t.m
Max. wheel pressure	32t
Walking way	Can provide walking track (with track clamp deice, power brake function), crawler walking
Way of working	360° ratating hydraulic grab grasping (cylinder, tubing with guards)
Rated production efficiency	Wood length 3m @ ≥ 420m³/h Wood length 6m @ ≥ 840m³/h
Working cycle time	< 45s
Control method	Hydraulic pilot
Suitable rail	All kinds of international specifications rail
Swing speed	9.6r/min
Walking speed	≥ 12m/min
Working radius	≥ 13m
Working height range	15 m to -3m
Grabber diameter	1.5m
Power supply	380 / 220 /24 V
Electrical equipment protection level	IP65
