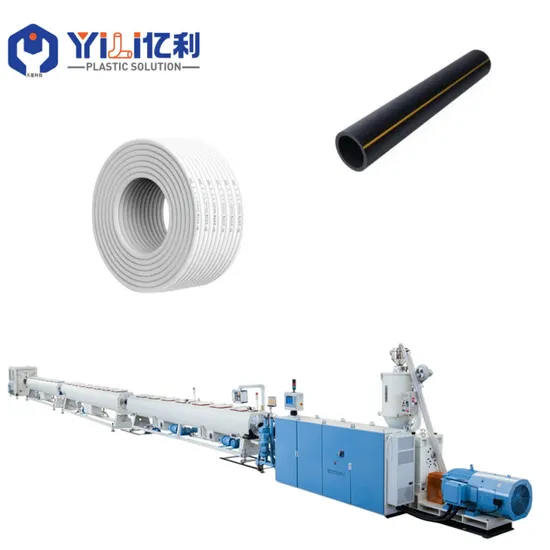

Large Diameter 1600mm HDPE Pipe Making Machine for Water, Energy, Gas, and Irrigation

Product Description

Introduction
Our state-of-the-art HDPE Pipe Extrusion Machine stands as the pillar of excellence in nationwide projects encompassing water supply, sewage, gas, and residential water systems. Drawing inspiration from the zenith of European technology, YILI machinery has meticulously crafted a product that harmoniously marries high-end design with a unique structural integrity. This culminates in a high configuration, extensive automation, and an effortlessly user-friendly operation experience.
The entire production line is equipped with a sophisticated PLC control system, complemented by a substantial liquid crystal display screen, which elevates operational efficiency to unprecedented heights. Moreover, the line exhibits unparalleled versatility, featuring an auxiliary extruder specifically tailored for extruding marking lines. Technical Specification

33D Series Classical Production Line:
Model	OD (mm)	Extruder	Max. Output (kg/hr)	Max.Haul-off speed (m/min)
PEG63	Φ20-63	SJ65/33	220	15
PEG110	Φ20-110	SJ65/33	220	15
PEG160	Φ50-160	SJ75/33	400	12
PEG250	Φ75-250	SJ75/33	400	10
PEG315	Φ90-315	SJ90/33	500	8
PEG450	Φ110-450	SJ90/33	500	5
PEG630	Φ280-630	SJ120/33	850	3.3
PEG800	Φ400-800	SJ120/33	1000	1.8
PEG1200	Φ800-1200	SJ150/33	1300	0.8
38D Series High Efficient Production Line:
Model	OD (mm)	Extruder	Max. Output (kg/hr)	Max.Haul-off speed (m/min)
HPEG63	Φ20-63	HSJ60/38	320	30
HPEG110	Φ20-110	HSJ60/38	380	25
HPEG160	Φ50-160	HSJ60/38	460	15
HPEG250	Φ75-250	HSJ75/38	600	12
HPEG315	Φ90-315	HSJ75/38	650	10
HPEG450	Φ110-450	HSJ90/38	800	8
HPEG630	Φ280-630	HSJ90/38	950	5
HPEG800	Φ400-800	HSJ120/38	1300	2.5
HPEG1200	Φ800-1200	HSJ75/38 HSJ90/38	1400	1.2
HPEG1600	Φ1000-1600	HSJ90/38 HSJ90/38	1600	0.7

Tech Features & Advantages

Our ingeniously designed spiral bush significantly amplifies the extruder's capacity and performance, ensuring superior output. Our expertly crafted, unique screw design promises optimal plasticization of raw materials, significantly boosting efficiency. We provide a high-torque, precisely engineered gearbox that guarantees unmatched stability throughout machine operation. Our advanced precision temperature control system ensures optimal material melting performance, delivering superior results. We offer fully automated water temperature and level controls for both the vacuum and cooling tanks, complete with extensive filters for impeccable quality. Our system features 2-12 caterpillars for haul-off, each equipped with innovative servo motor control for seamless operation. Equipped with SIEMENS' state-of-the-art PLC control, our line achieves unparalleled synchronization and operational efficiency.
Technology Process -High performance Extruder, The core of the entire production process, ensuring maximum capacity, superior efficiency, and outstanding plasticization.
-Mould
Material: Robust 40Cr, ensuring durability and reliability.
Design: Ingenious spiral or basket configurations for precision.
Available in single-layer or sophisticated multi-layer designs to suit various needs.
-Vacuum tank
Material: Premium SUS304 with a thickness of 5mm-7mm, ensuring longevity.
Featuring innovative automatic water temperature and level control technology.
Ensures precise calibration for optimum performance and results.
-Cooling tank
Material: Quality SUS304 with a thickness of 3mm-5mm, engineered for excellence.
Engineered for rapid and efficient cooling, maintaining superior standards.
-Haul-off
Driven by a frequency inverter to servo motor, providing precision control.
Equipped with high-quality rubber belts or durable blocks for reliability.
Includes an encoder for precise pipe metering, ensuring accuracy.
-No-dust cutter
Design: Versatile universal or cast aluminum fixture unit for adaptability.
Ensures smooth, no-dust cutting for a flawless finish with every use.
Features servo motor synchronization control for perfect alignment and precision.
-Dual Position coiler
Facilitates automatic pipe arrangement, streamlining production processes.
Accommodates pipe sizes ranging from 16mm to 110mm with remarkable ease.

---
