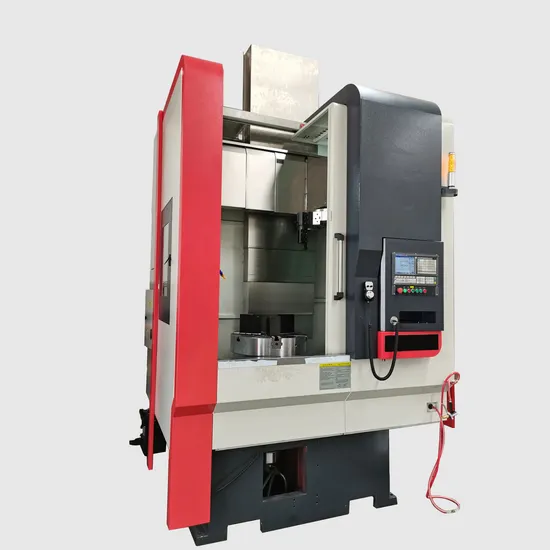

Alloy Wheel Repair Lathe CNC Vertical Lathe with 18.5kw Motor Power

Product Description

Alloy wheel repair lathe cnc vertical lathe with 18.5kw motor power
1.Product Description

In order to meet the needs of the market, we independently developed the verticalwheel repair machine, VTC70 CNC Vertical Lathe Machine. Based on years of experience in the manufacture, sales and combined with users' feedback, we have carried out a variety of user-friendly designs.

1.The machine bed as a whole casting vertical structure. Compared with the horizontal structure, the mechanical transmission is more stable, the turning performance is better and the machining precision is higher.
2.Wheel diameter range is large,machine tool area is small, professional is strong, value for money, operation and use more convenient.
3.Self-developed special wheel repair software. LCD touch screen configuration. Wheel surface measurements and program optimization are done all at once on the machine tool system,So simple, easy to understand and easy to operate.
4.Laser non-contact measurement or probe contact measurement optional, both can also be configured. Laser measurements enable fast scanning.



2.Specification

Specification	UNIT	VT45	VT 65	VT75
Max.Swing diameter	mm	500	650	750
Spindle speed	rpm	100~1500	100~1000	100~1500
Cutting feed speed	mm/min	0.1~1000	0.1~1000	0.1~1000
Vertical moving distance of tool holder	mm	550	600	700
Tool rest horizontal moving distance	mm	400	450	700
Longitudinal fast moving speed	mm/min	16000	16000	16000
Transverse fast moving speed	mm/min	16000	16000	16000
Tool holder form		horizontal	horizontal	horizontal
Diameter of hydraulic chuck	mm	400/500	400/500	400/500/630
Main motor power	Kw	15	18.5	22
positioning accuracy	mm	±0.008	±0.008	±0.008
Re -positioning accuracy	mm	±0.004	±0.008	±0.008
Machine size	mm	2000x1900x3030	1710x2050x2910	2200x1900x3200

3.Application
This series machine is suitable for machining parts in all industries. Especially for wheel cutting and milling.On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.

4.Packaging Details


1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.

5.Our services


Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
6.Company information

7.Certifications
Zhongyou has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.

8.FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
