Product Description
Product Description

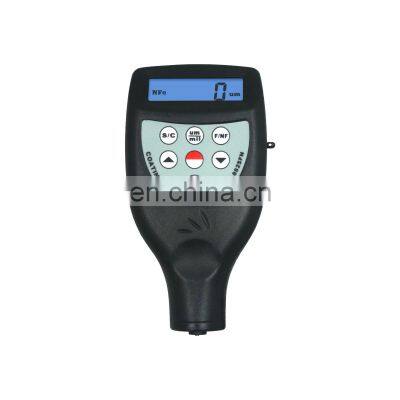

micron thickness gauge cm-8825 thickness gagecar paint thickness gaugeModelCM8825F, CM8825N, CM8825FNMeasuring range0~1250um/0~50mil(default range)Resolution0.1/1Accuracy±1-3%n or ±2.5umMin. radius work pieceF: Convex 1.5mm/ Concave 25mmN: Convex 3mm/ Concave 50mmMin. measuring area6mmMin. sample thickness0.3mmMetric / lmperialConvertiblePower supply4 x1.5V AAA(UM-4) batteryBattery indicatorLow battery indicatorDimension126 x 65 x 27 mmWeight (Not including battery )81gOptional AccessoriesCable & software for RS-232Ccar paint thickness metercoating thickness gaugeStandard AccessoriesMain UnitCalibration Base Set (F Type / NF Type) CTG-BSCalibration Foils CTG-CF (1 set, 4 pieces)Carrying CaseOperation ManualOptional AccessoriesUSB, RS-232C data cable with software data out put with softwarecoating thickness gauge(F type) Magnetic induction: Can measure the thickness of Non-magnetic coating layers On magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel )(NF type) Eddy current: Can measure the thickness of nonconductive coating layers covered on nonferrous substrate. Such as : ( enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel) Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
>>
