Make in China Plug Injection Plastic Mold Machine Equipment

Product Description

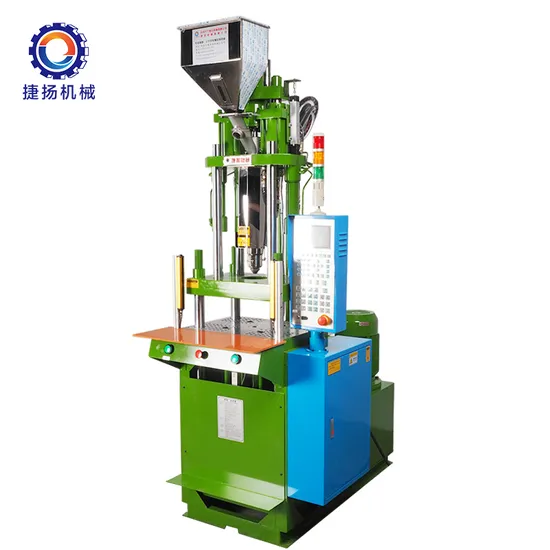

Make In China Plug Injection Plastic Mold Machine Equipment
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend
machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Parameter of Machine:

JY-250ST / JY-350ST Technique specification
Model		Units	JY-250ST		JY-350ST
Injection System	Screw Diameter	mm	Φ26	Φ28	Φ32	Φ34
	Injection Pressure	Kg/cm2	1530	1278	996	820
	Theoretical Shot volume	cm3	61	70.8	92	110
	Max. Shot Weight(P.S)	g/Oz	56/2	64/2.27	84/3	106/3.75
	Injection Rate	mm	115		115
	Max.Screw speed	rpm	0-205		0-190
	Temperature Control	ZONE	2		2
Clamping System	Clamping Force	T	35		45
	Platen Size	mm	540*380		580*430
	Distance Between Tie Bare	mm	375*205		410*250
	Min Mold Height	mm	158/58		220/70
	Opening Stroke	mm	180		200
	Max. Open Daylight	mm	338/238		420/270
	Ejector Force	T	1.3		1.76
	Ejector stroke	mm	35		35
Hydraulic System	Max. Hydraulic Pressure	Kg/cm2	140		140
	Pump Output	L	34.5		37.2
	Pump Motor Power	Kw	3.75/5HP		5.5/7.5HP
	Barrel Heating Power	Kw	2.4		2.8
	Total Wattage	Kw	6.3		9
Others	Machine Dimensions (L*W*H)	m	1.55*0.95*2.45		1.7*1.2*3
	Shipping Measurement (L*W*H)	m	1.76*1.15*2.3		1.92*1.3*2.3
	Machine Weight	T	1.3		1.4
	Shipping Weight	T	1.35		1.45

Key Parts List
Part Name	Brand	Original of Country	Features
Computer	Star Denshi	Japan	High Precise Control, sensitive response, TFT Color display
Servo Motor	YASKAWA	Japan	Energy Saving
Electromagnetic valve/ solenoid valve	Yuken	Japan	High sensitive response
hydraulic valve	HSUTIEN	Taiwan	Longer span life
Material Cylinder	Tan Star	Taiwan	Antia brasive corrosion resistance Longer span life
Electronic parts	Schneider Fuji Fotek	France/Japan/Taiwan	Stable High sensitive
hydraulic Motor	White	USA	Low noise
Servo Pump	Eckerle	Germany	Low noise
Electrical Ruler	Gefran	Italy	High Precise Control
Tiebar	Genaral	Taiwan	High hardness
Seal	HALLITE	UK	Longer span life
Proportional rejection valve	Yuken	Japan	High Precise Control Longer span life
Oil Cylinder	Lianhuei	Taiwan	Antia brasive

Machines Details:

Application :
Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.

Youtube Vedio:
1. https://youtu.be/dgv7HaKg1Ro (15, 30 ton)
2. https://youtu.be/G348PTJSlK4 (standard,35, 45, 55, 85, 120 ton)
3. https://youtu.be/nLU_Atu1vTA (PC, 35, 45, 55, 85, 120 ton)
4. https://youtu.be/fYOD2omwP7Q (zipper making machine)
5. https://youtu.be/bu_9s4mYFvA (zipper making machine)
6. https://youtu.be/t-6_cSh_dCo (zipper making machine)
7. https://youtu.be/v-gU0rQIWnc (Workshop in the night)
8. https://youtu.be/eiecpUPhGP4 (USB Cable Production)
9. https://youtu.be/cZTeIqcBjvo ( USB Production)
10. https://youtu.be/vPLE-tvpkoo Plastic Staple Injection Molding Machine
11. https://youtu.be/5U9eAOhcHRI Plastic Fitting Jieyang C Type Injection Molding Machine
12. https://youtu.be/FYqTr1P9S0Y Mobile Phone Case Vertical Injection Moulding Machine
13. https://youtu.be/GvvR_LNdRmk Single Sliding Vertical Injection Molding Machine
14. https://youtu.be/jRS46TR-SvY Injection Molding Machine Operation in Vietnam
15. https://youtu.be/WWZiuse2F0s Video of Shoe sole production
16. https://youtu.be/qaEaoy2LFm8 Shoe Sole Injection Molding Machine
17. https://youtu.be/H7o8s3Qb_hk Garments Accessories Injection Molding Machine
18. https://youtu.be/Fno7_FFUY1c 85 Ton Vertical Injection Molding Machine
19. https://youtu.be/_fb1PvWRn00 Mobile Phone Case Vertical Injection Molding Making Machine
20. https://youtu.be/aDure8mvh1E Produce Shower Head Product
21. https://youtu.be/8N_ryW3g-MI 55 ton and 85 ton Vertical Plastic Injection Molding Machine
22. https://youtu.be/yoJU9iOxcxI Double Slide Vertical Injection Molding Machine
23. https://youtu.be/yETqeo2Bshw Rotary Table Disk Type Injection Molding Machine
24. https://youtu.be/mIHq5qQAWbg Rotary Table Injection Molding Machine
25. https://youtu.be/LehwCrmcKxg 6 cavity 2 pins Flat Electric Plug
26. https://youtu.be/_5iaX8xvXQA Female Electric Plug
27. https://youtu.be/52mUpNJWoB0 35 ton Vertical Injection Molding Machine
28. https://youtu.be/oC-wtsUIDN0 Ear Phone Vertical Injection Molding Making Machine
29. https://youtu.be/7G7_64XR5Yc Shoe Sole Injection Molding Making Machine
30. https://youtu.be/-mT7yfMfIGQ Patch Cord Vertical Injection Molding Machine
31. https://youtu.be/jlDDOnxhjxk 35 Ton Two Cavity Electric Plugs
32. https://youtu.be/FZAVFelboIM Refrigerator Wire Harness C Type Injection Molding Machine
33. https://youtu.be/jUlB9QmSm3M 45 Ton Double Slide Vertical Plastic Injection Molding Machine

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Where is your factory? How can visit you?

A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: Why choose Jieyang Machinery Co., Ltd.?

A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

Welcome to inquiry us !

---
