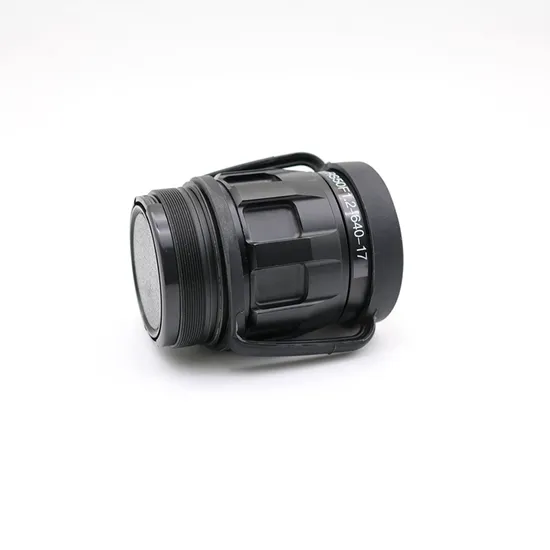

Multi-Coating HD/ Ar/ Dlc Infrared Material Germanium/ Zns/ Znse Lens Focal Length 50mm F/1.2 Lwir Thermal Sight Infrared Optical for 640X512-17um

Product Description

Product Parameters FL 50mm F1.2 LWIR Thermal Sight Lens Parameter:

Focal Length	50mm
F#	1.2
Detector	640x512-17um
Average Transmission	>94%
Wavelength	8-12um
Circular FOV	(H)12.4°x(V)9.3°x(D)15.5°
Back Focus Distance	18mm
Back Working Distance	8.5mm
Back Focus Length	19.78mm
Dimensions	56mm / 63.76mm
Focus Type	Manual Focus
Focus Range	1m to infinity
Mount Type	M45x1-6g
Weight	148g
Operating Temperature	-40ºC to +80ºC
Storage Temperature	-40ºC to +80ºC
External Coating	DLC / AR coating available

Company Profile Factory Equipment
Packaging & Shipping
Certifications
FAQ Q1: Can OEM or ODM be provided?
A: Yes, we provide customized services for customers. You need to provide us with some technical data, such as dimensions and markings.
Q2: Can items be printed with our own logo?
A: Yes, you only need to send us the source file of the logo.
Q3: Do you provide samples? Is it free or extra?
A: We will charge as little sample fee as possible, and sometimes we may even provide samples for free. However, you must pay us the courier fee by the following courier methods: DHL, TNT, UPS and FEDEX.
Q4: What if the item is broken?
A: Except for human error, we will replace the defect in a completely new way Within 7 days after you get our products.
Q5:What's your leadtime?
A:1 day for inventory and 25~35 days for the new project.
Q6:What's your shipping type? A:Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

---
