Stainless Steel Reactor Tank Pressure Vessel Certificate Available

Product Description

Reactor as part of the processing project, can be vary from 200ml to 20tph, customized also.
Welcome offering the design drawing for a quotation.
Widely applied in food /beverage processing project, and chemical / pharmaceutical /biological-processing project.

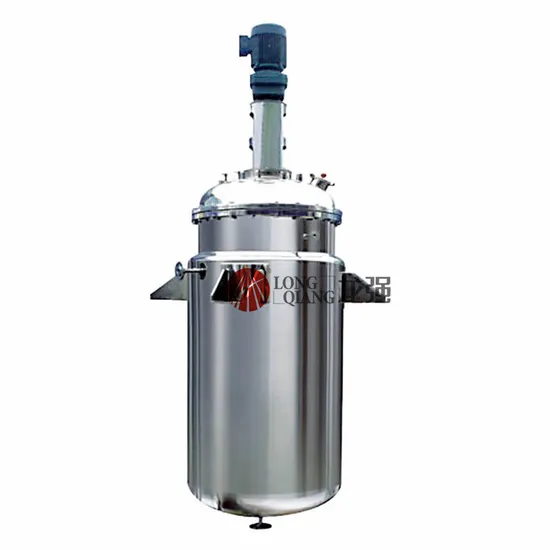

reactor Tank
reactor is widely used in pharmaceutical, fine chemical, biological engineering and dairy industries. It is designed with jacket (for cooling and heating) and an insulation layer. The inner surface of the crystallization tank is mirror finished with fineness Ra≤0.4цm, no dead corner. Whole-enclosed design ensures that materials are always mixed and ferment at non-pollution state. tank is equipped with devices like air respirator, cleaning ball, sanitation manhole, viewing mirror and viewing light. The fermentation process of pharmacy, fine chemical engineering and biological products is aseptic and untainted. tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. This tank is especially designed and installed with aseptic respirator or aseptic normal pressure fermentation system. The parts contacted with material are all made using SUS304 or SUS316. Heat preservation material is made from polyurethane foam or pearl cotton. External surface is matt finished. Volume has different specifications ranging from 100-20000L.
Technical parameter

Model Specification	100L	200L	500L	1000L	2000L	5000L	10000L	20000L
Diameter (mm)	400	500	700	900	1200	1500	1800	2300
Height (mm)	2000	2300	2650	2900	3800	4480	5250	6550
Pressure in the tank (Mpa)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Pressure in the jacket (Mpa)	0.3	0.3	0.3	0.3	0.3	0.3	Tube0.3	Tube0.3
Blade	2	2	2	2	2	3	3	4
Rotary speed (r/min)	80
Motor power (Kw)	0.55	0.75	1.1	1.5	3	5.5	7.5	7.5
Cooling method	Jacket					Coil

note: specification is customizable.

---
