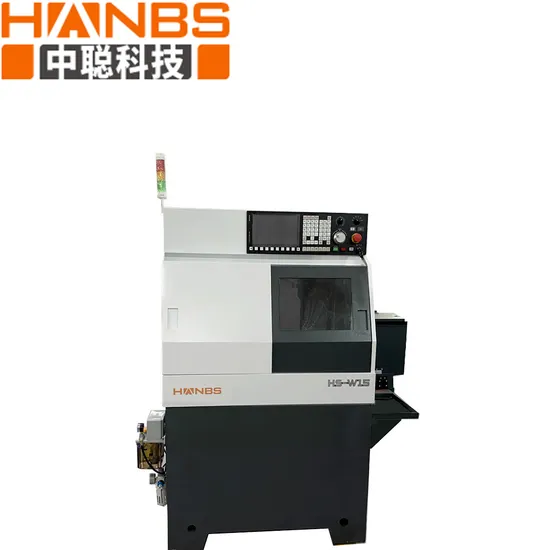

Hanbs CNC Machine 5-Knives Cutting Machine with High Machining Accuracy

Product Description

W15- CNC Machine 5-Knives Cutting Machine with High Machining Accuracy
Product Description
1.Strong adaptability
Strong adaptability to processing objects and the characteristics of single piece production of products such as molds provide suitable processing methods for mold manufacturing.
2.Stable processing quality
High machining accuracy, capable of using five types of cutting tools simultaneously to process products, with stable machining quality.
3.High flexibility
Cnc lathe can perform multi coordinate linkage and process complex shaped parts.
4.Time and effort saving
When changing the machining parts, it is generally only necessary to change the CNC program, which can save production preparation time and does not require too much manual intervention.
5.High production efficiency
The machine tool itself has high precision and rigidity, and can choose favorable processing quantities, resulting in high productivity.
Product Photoes
Product Information

control system	HANBS self-innovate (yn 1.0 versions)
Servo axis number	Standard 12 axis
Programming method	5-channels G code programming, each axis can be programmed separately
The number of knives	Group 5
Maximum machining diameter	Φ15mm Φ20mm
Maximum machining length(50mm in guide mode)	The walking knife mode is 50mm
Maximum axial bore diameter (When the back shaft is 12mm and the handle is 10mm)	Φ6mm
Drilling arm handle diameter	∅5(Three)∅6(Two)
Attack capability (spindle reversal mode)	M6 Copper
Dental tapping ability (doraxial delivery)	M5 Copper
Car thread function	Yes
Multi-knife synchronous processing function	Yes
Radial max bore diameter	Φ7mm
Radial max bore tapping size	M5
Maximum clamping diameter of the back side spindle	∅12mm
Maximum bore diameter of the back-side spindle	∅6mm
Maximum tapping diameter of the back-side spindle	M6
Spindle power	2KW(With the function of score)
Backside platform axle power	1.0KW
Maximum spindle speed(For short use only)6000rpm	6000rpm
Back maximum speed (for short use only)	6000rpm
Maximum removal length of piece	50mm
Side power tool unit (optional)	2
End face power tool unit (optional)	1
Row knife ( 8 * 120 * 3))	3
Standard maximum number of tool installed (5 knives + 5 drill / boring)	10
High maximum number of tool installed (5 + 5 drilling / boring + 1 back strong drill)	11
Knife size	8*8
Z1.2.3.4.5 axial stroke	50mm
X1.2.3.4.5 axial stroke	30mm
Backshaft itinerary	150mm
X1.2.3.4.5 axial power	400W
Z1.2.3.4.5 axial power	400W
Z1, Z2, Z3, Z4, Z5, and Z2 axis fast-forward speed	30m/min
X1, X2, X3, X4, X5 axis fast forward speed	30m/min
Center height of spindle	1010mm
High version input power	7.6KW
weight	1800Kg
Fuel tank storage	50L
size	1550*1060*1650mm

Factory
Customer photoes
Packing & shipping
Examples of processed products
Certifications
Q&A
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.

Q2. How can I place order?
A: You can contact us by email about your order details, or place order on line. Thank you!

Q3. Can you give the favourable price?
A. We have different series machine,but we can recomand you machine according to your products and the quote favourable price for you.

Q4.Can you provide some certificate?
A. We can provide certificate which you need.

Q5.What kind of products your machine can processing?
A.Maxi processing diameter is46 mm.Mini processing daimeter is 3mm.And you can see the above picture about the samples.

Q6.How will the machine be transported?
A.We transport machine by sea.

Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production.
Q8.What's the MOQ?A: 1 set. We will offer you a better price if you order more.

Q9.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.
Q10.Machine installation. A: We could assign the technician to the place for the on-site installation if requested by the purchaser.

---
