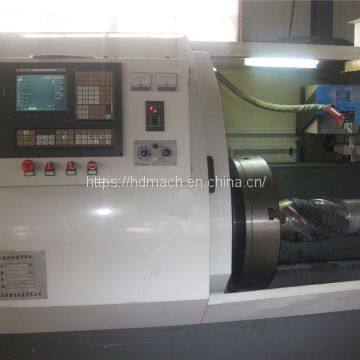

Drill pipe machine, light weight and easy to operate. Applications in oil and gas industry，auto weld hardfacing, wear protection pad on drill pipe, heavy weight drill pipe, tool joint, other tools used in drilling applications.
A: Can weld 2 3/8" - 9" tool joint (It is available for 18 degree or 35 degree inclined surface, excircle, inclined surface can continues building-up welding)
B: Can level weld 2 3/8" - 9" common drill pipe, heavy weight drill pipe, drill collar etc
C: Can weld 18degree drill pipe inclined surface
D: It can be movable too, container type
E: Can weld drilling stabilizers, PDM drills, bent housing etc.
| Unit
| HY-200
| HY-260
|
Spindle center height
| mm
| 950
| 950
|
Welding length
| mm
| 0-200
| 0～200
|
Workpiece diameter
| mm
| ≤200
| ≤260
|
Spindle number of speeds
| NO.
| Stepless | Stepless |
Spindle speed
| r/min
| 0.2～2
| 0.2～2
|
Max. travel of X-axis
| mm
| 320
| 320
|
Max. travel of Z-axis
| mm
| 500
| 500
|
Noise
| dB
| ≤68
| ≤68
|
Wire-feeding wheel interval
| min
| 4.5
| 4.5
|
Welding wire change interval
| min
| 4
| 4
|
Wire feeder roller number
| NO.
| 2 or 4
| 2 or 4
|
Welding torch angle adjusting range
| °
| 0～19
| 0～19
|
Welding torch swing distance
| mm
| 10～35
| 10～35
|
Welding torch swing times per minute
| NO./min
| 50～150
| 50～150
|
Machine weight
| kg
| 2200
| 2300
|
Machine dimension（L×W×H）
| mm
| 2400*1600*2000
| 2400*1600*2000
|
>>
