| US$2,100.00-2,500.00 | 1 Piece (MOQ) |
| SPECIFICATION | |||

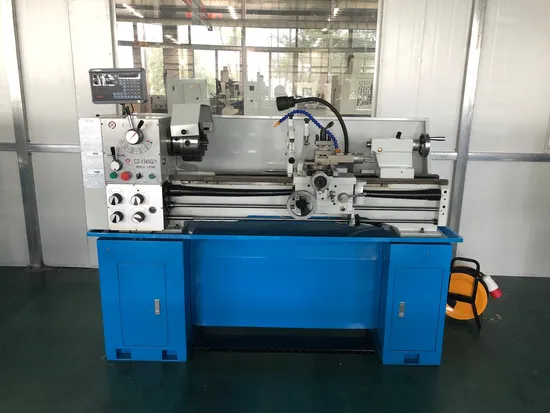

| ITEM | CZ1340G/1 | CZ1440G/1 | |
| Swing over bed | mm | φ330 | φ355 |
| Swing over carriage | mm | φ195 | φ220 |
| Swing over gap | mm | φ476 | φ500 |
| Width of bed-way | mm | 186 | 186 |
| Distance between centers | mm | 1000 | 1000 |
| Taper of spindle | M.T.5 | M.T.5 | |
| Spindle diameter | mm | φ38 | φ38 |
| Step of speed | 8 | 8 | |
| Range of speed | rpm | 70~2000 | 70~2000 |
| Head | D1-4 | D1-4 | |
| Metric thread | 26kinds (0.4~7mm) | 26kinds (0.4~7mm) | |
| Inch thread | 34kinds(4~56T.P.I) | 34kinds(4~56T.P.I) | |
| Moulder thread | 16 kinds(0.35~5M.P) | 16 kinds(0.35~5M.P) | |
| Diametral thread | 36 kinds(6~104D.P) | 36 kinds(6~104D.P) | |
| Longitudinal feeds | mm/r | 0.052~1.392 (0.002~0.0548) | 0.052~1.392 (0.002~0.0548) |
| Cross feeds | mm/r | 0.014~0.38 (0.00055~0.015) | 0.014~0.38 (0.00055~0.015) |
| Diameter of lead screw | mm | φ22(7/8) | φ22(7/8) |
| Pitch of lead screw | 3mm or 8T.P.I | 3mm or 8T.P.I | |
| Saddle travel | mm | 1000 | 1000 |
| Cross travel | mm | 170 | 170 |
| Compound travel | mm | 74 | 74 |
| Barrel travel | mm | 95 | 95 |
| Barrel diameter | mm | φ32 | φ32 |
| Taper of center | mm | M.T.3 | M.T.3 |
| Motor power | Kw | 1.5(2HP) | 1.5(2HP) |
| Motor for coolant systems power | Kw | 0.04(0.055HP) | 0.04(0.055HP) |
| Machine(L×W×H) | mm | 1920×750×760 | 1920×750×760 |
| Stand(left) (L×W×H) | mm | 440×410×700 | 440×410×700 |
| Stand(right) (L×W×H) | mm | 370×410×700 | 370×410×700 |
| Machine | Kg | 500/560 | 505/565 |
| Stand | Kg | 70/75 | 70/75 |
| Loading amount | 22pcs/20container | 22pcs/20container |
